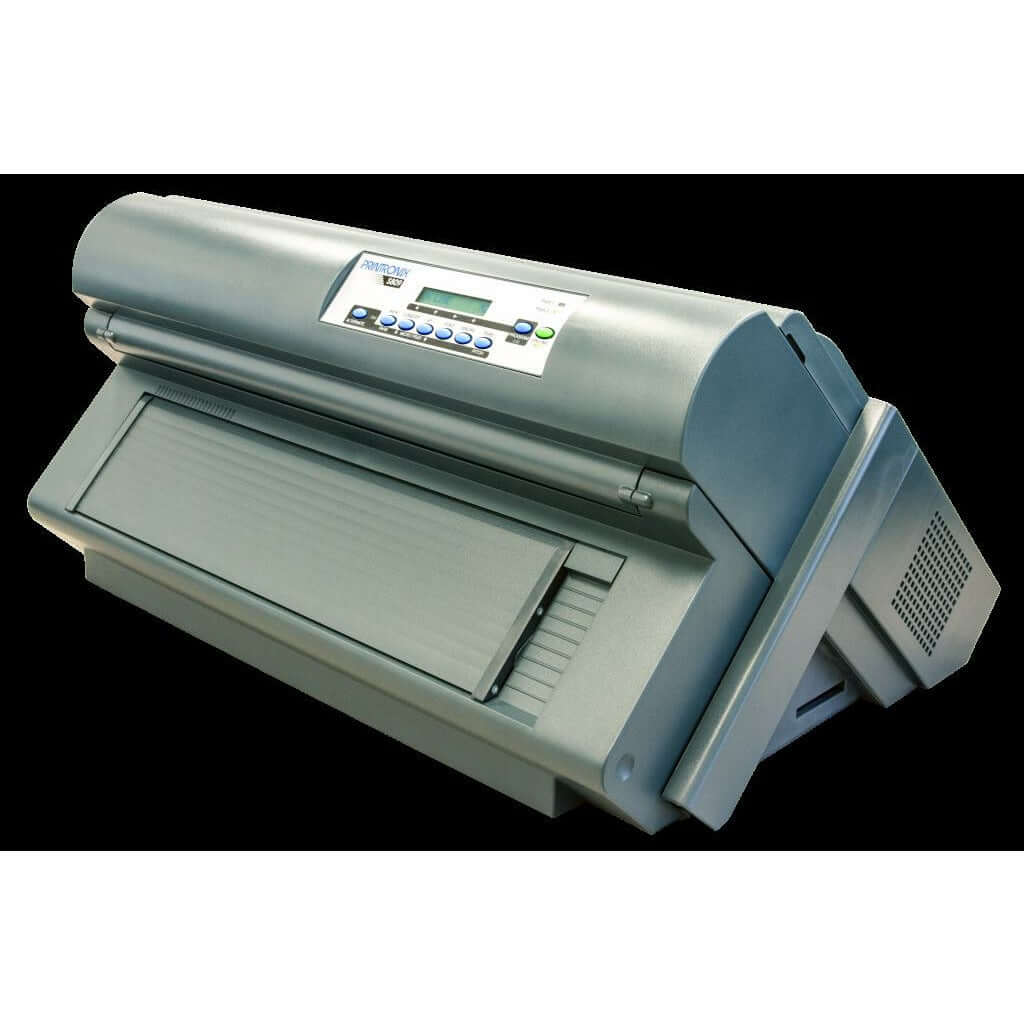

Printronix S809
Reliable, industry leading 24-pin price/performance built to be the toughest, fastest and quietest in its class.
- 900 CPS @ 10 CPI
- Lowest noise level in its class: 54dBA
- Best in class 800M character printhead life
- Extended ribbon life: 25M Characters
- Automated and configurable zero-tear form feeding minimizes user intervention
- Powerful remote printer management
- Robust multi-lingual operator panel
- Optional second front feed tractor available
- Standard Interfaces: parallel, serial, USB & Ethernet
- Wide format: 136 columns
- Heavy duty 6-pin tractors deliver superior form feed reliability on up to 8-part forms
- Open pedestal (optional)
Fast & Tough
The Printronix S809 Serial Matrix Printer combines 900 cps print speed performance (@ 10 CPI) with best in class printhead life, workload capacity, and reliability (MTBF) so you can meet & exceed your output requirements while maintaining the lowest possible cost of ownership. In addition, the primary & secondary front feed forms paths use heavy-duty 6-pin tractors for optimal zero-tear forms feeding reliability on up to 8 part forms, and the extended life ribbon delivers 25% more yield than most competitive offerings.
Quiet
At 54dBa the S809 delivers best in class acoustics. Around 50% quieter than leading competitors, it is unrivaled in noise reduction. The S809 also boosts ease of use through a high-function, multi-lingual operator interface, and minimizes user intervention through fully automated & customizable forms handling auto load, eject
& restore, park, and forms thickness adjust. Additionally, standard Ethernet, USB, Serial & Parallel allow for flexible placement. To assist IT with managing larger install bases of distributed printers, the S809 also includes a powerful remote printer management utility for real-time status updates, remote configuration of multiple printers, and access to a fully functional virtual operator panel.
Print Technology
24-pin serial dot matrix printer 136 columns @ 10cpi
Throughput (ISO/IEC 10561 @10CPI)
-
DIN LetterUp to 660 PPH
-
SpreadsheetUp to 450 PPH
Throughput (Draft Mode @10CPI)
-
40450 LPM
-
80330 LPM
-
136250 LPM
Print Speed @ 10,12,15 CPI
-
Draft:800,960,1200
-
Best Draft:400, 480, 600
-
NLQ:267, 320, 400
-
LQ:133,166, 200
Line Length (number of characters)
- 10 cpi 136
- 12 cpi 163
- 15 cpi 204
- 17.1 cpi 233
- 20 cpi 272
- 24 cpi 326
Media Handling
Front tractor push 6-pin with jam sensor. Optional second front tractor push 6-pin with jam sensor
Media Specifications
- Media Type: Continuous form, front loading
- Width: 76 to 432 mm (3 to 17)
- Length: 78 to 610 mm (3 to 24)
- Max Thickness: 0.635mm (0.025)
- Copies: 1+7
- Weight: Top form: 55 to 150 g/m2
- Attached Sheet: 45 to 75 g/m2
Horizontal Spacing
10, 12, 15, 17.1, 20, 24 cpi & proportional
Vertical Spacing
- 6, 8, 12 lines per inch
- 3, 4, 6, 8, 12 lines per 30mm
- n/72, /144, /216, /360 per inch
Graphics Resolution
- Horizontal: 60, 80, 90, 120, 240, 360
- Vertical: 60, 72, 180, 360
Fonts
Draft, Courier, Gothic, OCR-A, OCR-B, Prestige, Script, Presentor
Barcodes
Codabar, UPC-A, UPC-E, EAN-8, EAN-13, UPC/EAN ADD-ON 2 and 5, Code 2 of 5, Code39, Code128, Code11, Code93, CodeGP, CodeBCD, C25-3BAR, Postnet, MSI, Intelligent Mail barcode
Memory
Input buffer: 128 Kb
Connectivity
USB 2.0, Parallel, Serial RS232, Ethernet 10/100
Ribbon Life
Extended Life Ribbon: 25 Million Characters
Printhead Life
800 million character yield
Workload
Pages per month: 57,000
Physical Dimensions
Dimensions (LxWxH): 450 x 700 x 320 mm / 17.7 x 27.5 x 12.6
Weight: 21 Kg / 46.3 lbs
Power Requirement
100 240V, Auto Range, (60 Hz 50 Hz)
Reliability
MTBF: 20,000 hours
Software
Remote Printer Management Utility
Power Consumption
120W Printing, 30W Standby
Operating Temperature
- Temp: 10 to 40.6C (50 to 105F)
- Humidity: 10% to 90% Relative Humidity
- Storage Temp: -35 to 65C (-31 to 149F)
- Humidity: 5% to 95% Relative Humidity
- Noise: <54dBA
Drivers
Win10 (32/64), Win8 (32/64), Win7 (32/64), WinServer2008 (32/64),
Win2003 (32/64), WinNT, 2000-WinXP, 98_ME, Vista
Emulation Types
Epson ESC/P LQ Series, IBM Proprinter XL24, IBM Personal Printer 2391,
ANSI 3.64, S809 native commands
Special Functions
Auto paper path switching via operateor panel or software commands. / Auto gap adjust for forms thickness. / Auto fanfold position for zero tear-off. / Auto paper parking of continuous forms.
P8000 OpenPrint Line Matrix Printers
| SM809-EMEA |
Printronix S809 Serial Matrix Printer w/ Ethernet, USB 2.0, Serial and Parallel |
