Description, Specifications for QNAP QuCPE-7012 32G

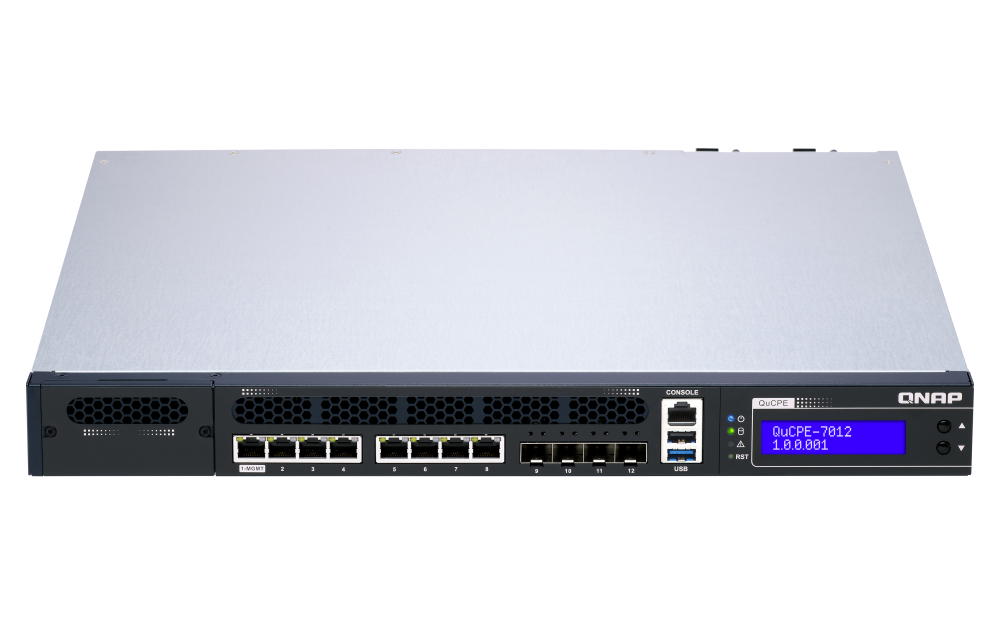

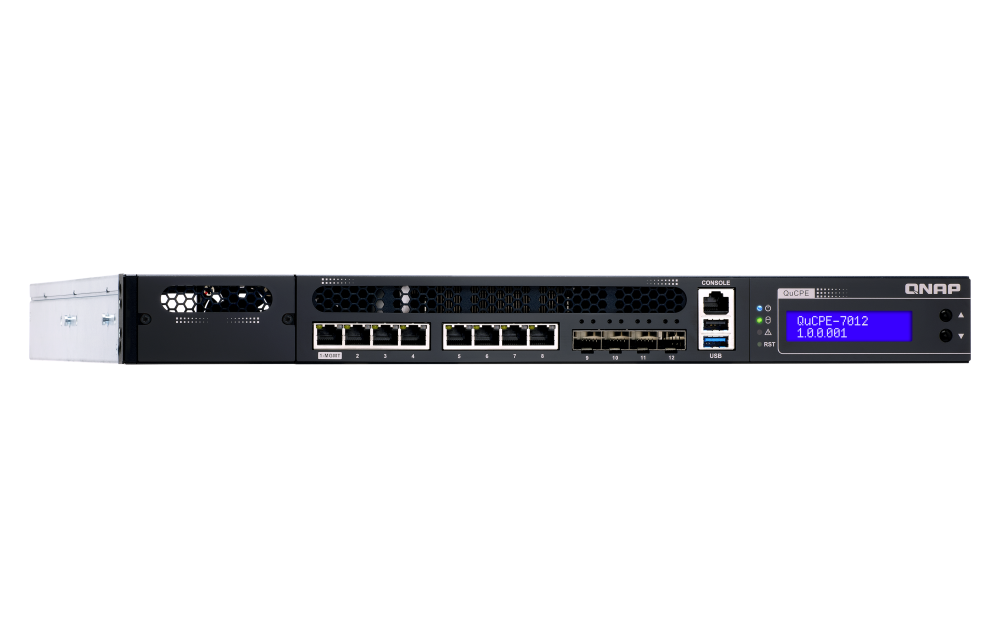

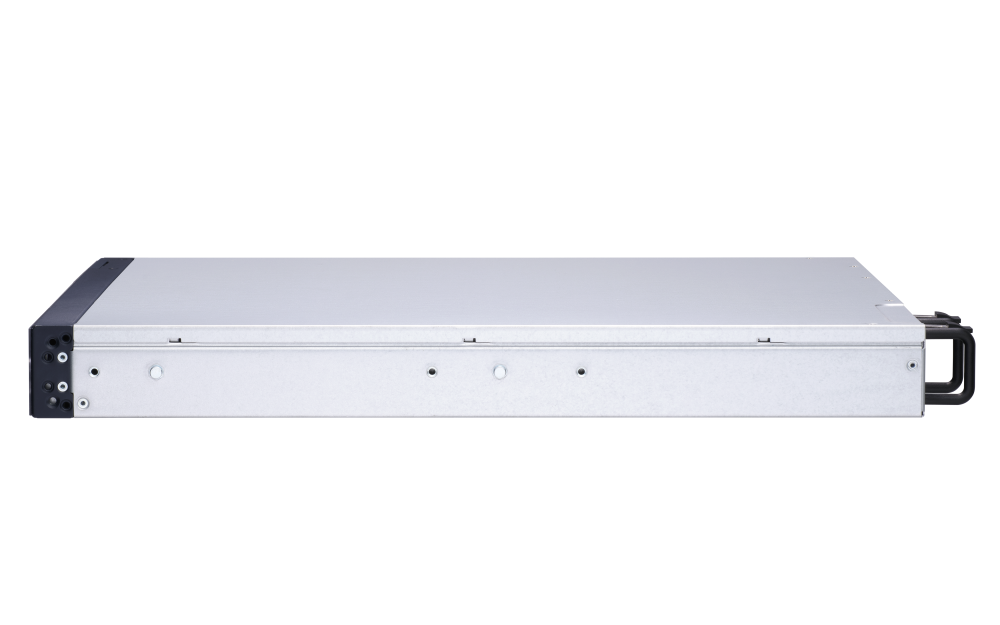

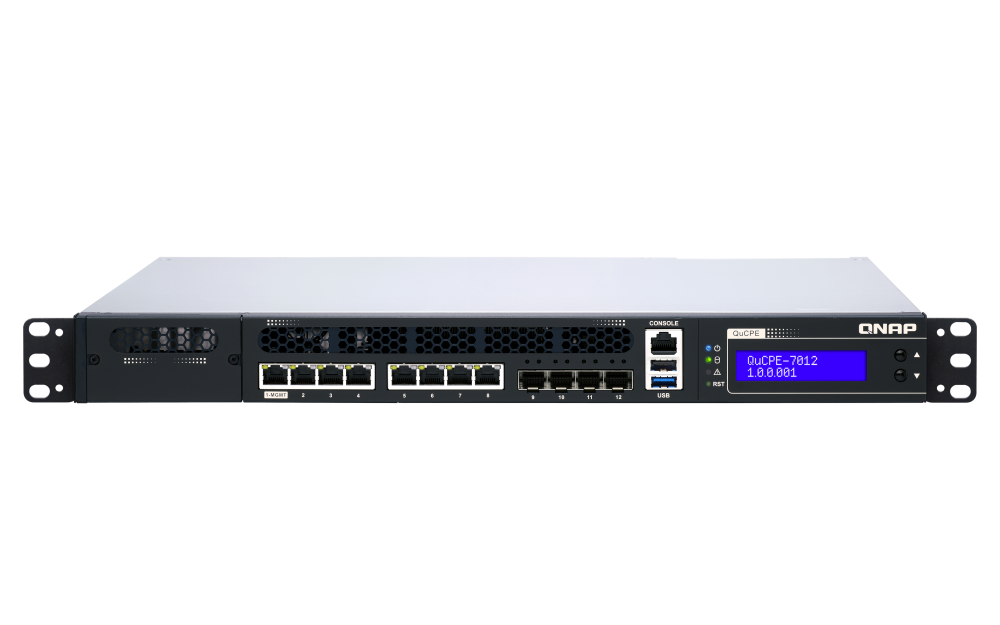

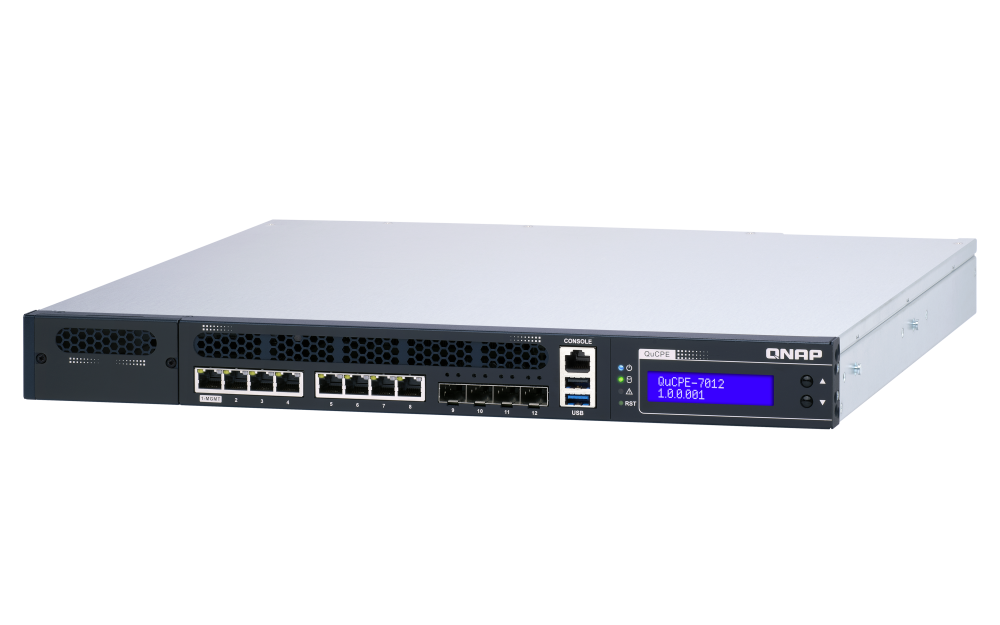

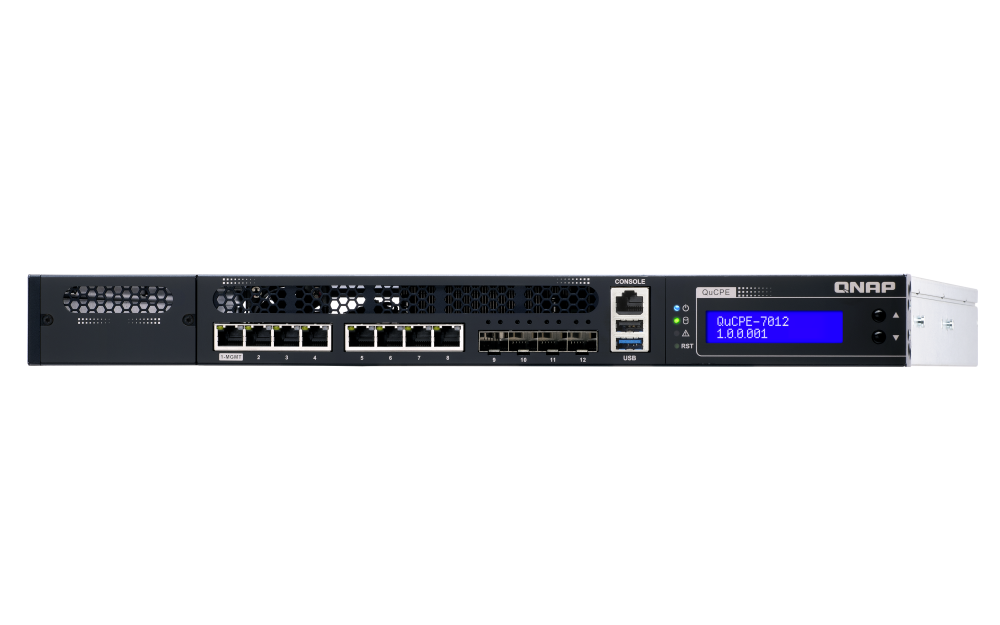

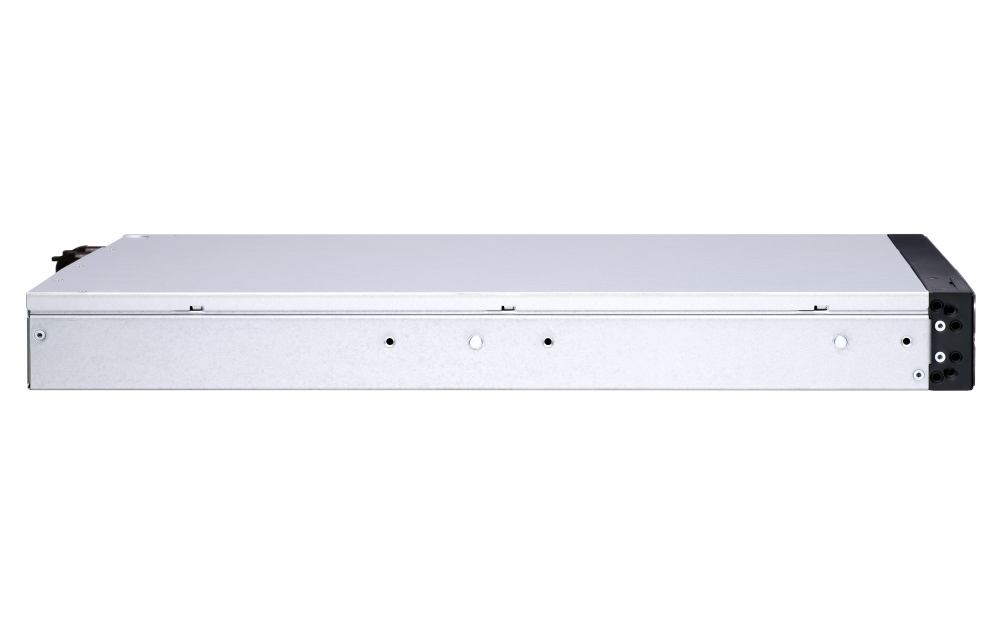

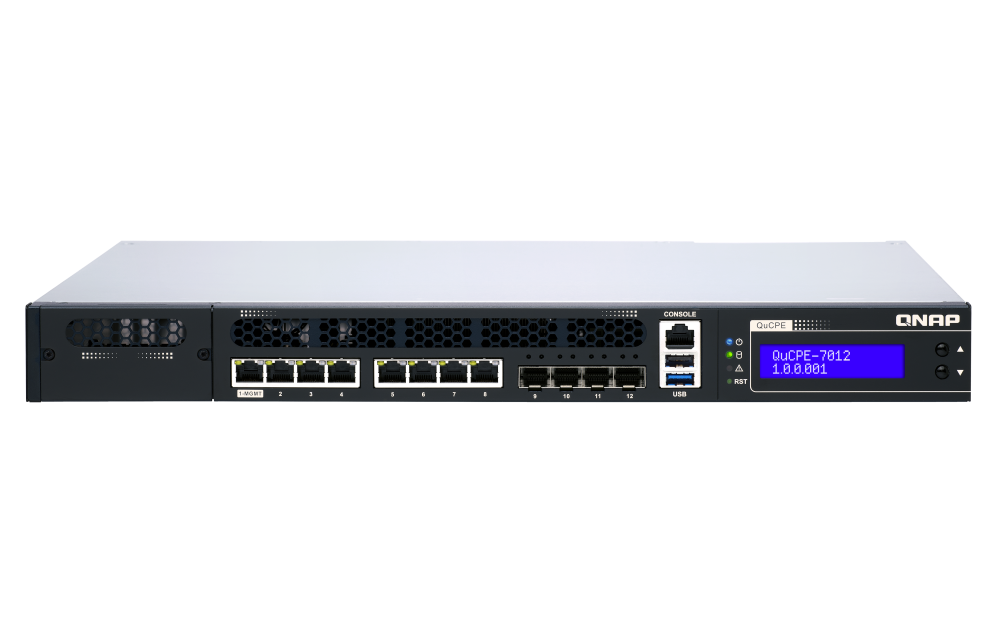

QuCPE-7012
Network Virtualization Premise Equipment with an Intel® Xeon D multi-core processor, suitable for multi-user and multi-tasking business applications.
QNAP’s QuCPE-7012 Network Virtualization Premise Equipment is a universal virtualization platform specifically designed for SMBs. The QuCPE-7012 adopts powerful Intel® Xeon® D multi-core processors that support Intel® QAT*, Smart NIC SR-IOV and DPDK hardware acceleration technologies and provides multi-port 2.5GbE, 10GbE, a network module slot and a PCIe slot for 25GbE/ 10GbE expandability. With enhanced bandwidth and computing performance for running multiple VMs and VNFs, the QuCPE-7012 is suitable for multi-user and multi-tasking business applications. The QuCPE-7012 also features the QNE (QNAP Network Equipment) OS for chaining VNF services and AMIZ Cloud centralized deployment and management platform to realize flexible Zero Touch Provisioning.
-
Network Function Virtualization
QNAP’s proprietary QNE operating system provides convenient and intuitive Network Service Composer with the world’s first visualized VM / VNF service chaining topology.
-
Hardware Acceleration Technologies
Intel® QAT, Smart NIC SR-IOV and DPDK offer superior computing power for virtualization deployment and enhance SD-WAN and VPN transmission efficiency.
-
Cloud Management
AMIZ Cloud is a centralized management platform that enables IT administrator at HQ to centrally monitor all edge devices, virtual machines, and containers, helping enterprises achieve Zero Touch Provisioning to enhance IT deployment efficiency and reduce maintenance costs.
-
Multi-site Network Infrastructure
The incorporated QuWAN SD-WAN solution helps achieve multi-site network infrastructure expansion.
-
Installation-On-Demand
The Application Store is a software platform providing various Virtualized Network Functions (VNF) and applications including firewalls and software routers.
-
WireGuard VPN
Supports WireGuard VPN to offer privacy protection and advanced encrypted security transmission for faster and stable remote working networks.
Available Models:
QuCPE-7012-D2166NT-64GB
Intel® Xeon® D-2166NT 12-core/24-thread 2.0GHz processor (up to 3.0 GHz), 64 GB DDR4 ECC memory (4 x 16GB); 4 x 10GbE SFP+ ports、8 x 2.5GbE RJ45 ports
QuCPE-7012-D2146NT-32GB
Intel® Xeon® D-2146NT 8-core/16-thread 2.3GHz processor (up to 3.0 GHz), 32 GB DDR4 ECC memory (2 x 16GB); 4 x 10GbE SFP+ ports, 8 x 2.5GbE RJ45 ports
QuCPE-7012-D2123IT-8GB
Intel® Xeon® D-2123IT 4-core/8-thread 2.2GHz processor (up to 3.0 GHz), 8 GB DDR4 ECC memory (2 x 4GB); 4 x 10GbE SFP+ ports、8 x 2.5GbE RJ45 ports
Build a multi-site network infrastructure for SMBs and Micro-enterprises
QNAP’s high-performance QuCPE integrates the QuWAN SD-WAN solution, AMIZ Cloud platform, and WireGuard VPN. Small businesses and micro-enterprises can flexibly build multi-site network infrastructure by deploying a QuCPE Series 7 in their headquarters, and QuCPE Series 3 in their branches and workplaces.
Easily deploy virtual network environments with the 2-in-1 Premise Equipment
When deploying virtualized environments, Enterprises often choose to install costly enterprise-grade solutions on edge servers or free solutions with limited technical support – a hard decision for resource-constricted SMBs. In addition, simultaneously running multiple VMs can impact network performance. QNAP’s QuCPE Network Virtualization Premise Equipment feature hardware acceleration technologies, QNAP’s proprietary QNE Network operating system and the AMIZ Cloud centralized management platform to help SMBs build a highly-optimized virtual network infrastructure.
The QNE Network Operating System completes the virtual network infrastructure
QNAP’s proprietary QNE Network operating system supports the intuitive Network Service Composer and Software-Defined WAN (SD-WAN), allowing for flexible network deployment and multi-site network infrastructure expansion. By supporting Virtual Network Functions (VNF), Virtual Machines and Containers, QNE Network integrates network, computing and application services to realize network virtualization, application virtualization and efficient management, greatly lowering management and maintenance complexity.
AMIZ Cloud - powerful centralized VM management platform
The AMIZ Cloud centralized management platform enables IT administrator at HQ to centrally monitor all edge devices, virtual machines and containers. Supporting troubleshooting, and remote management via the Account Center, the QuCPE-7012 helps enterprises achieve Zero Touch Provisioning, thus enhancing IT deployment efficiency and reducing maintenance costs.
Efficient management via Service Composer with visualized topology
With the visualized topology of the Network Service Composer, you can easily set up VNFs or VMs, create virtual switches , and allocate physical network resources for chained services by drag and drop. When settings change, you can directly add/remove individual VNFs using the service composer, greatly simplifying operational network combination.
,
Run your VM/VNF Directly on QuCPE
QNE Network inherits versatile virtual applications from the QNAP QTS system. QuCPE can simultaneously run multiple virtual machines, software containers, and even bespoke user-made virtual machines in Virtualization Station and Container Station, assisting SMBs in improving deployment and management flexibility while streamlining hardware costs.
Powerful server-grade hardware architecture
With multi-port capabilities and expandable architecture, the QuCPE-7012 enables optimal storage, computing, and deployment flexibility to fulfill performance and application diversification requirements.
-
1x PCIe Gen3x8 expansion slot
Install a QNAP 25Gbps/10GbE network card, QM2 card, USB 3.2 Gen 2 (10Gbps) card, or a wireless adapter card for greater application potential.
-
1x Network module slot
Install a QNAP network module to add 10GbE RJ45/SFP+ ports.
-
System fans
Automatically adjusts fan speeds based on system temperatures.
-
Intel® Xeon® processors
High-performance Intel® Xeon® D series multi-core 2.2 GHz processors
-
DDR4 memory
Supports eight DDR4 2133/2400 Unbuffered DIMM memory modules for a maximum of 128GB/256GB RAM.
-

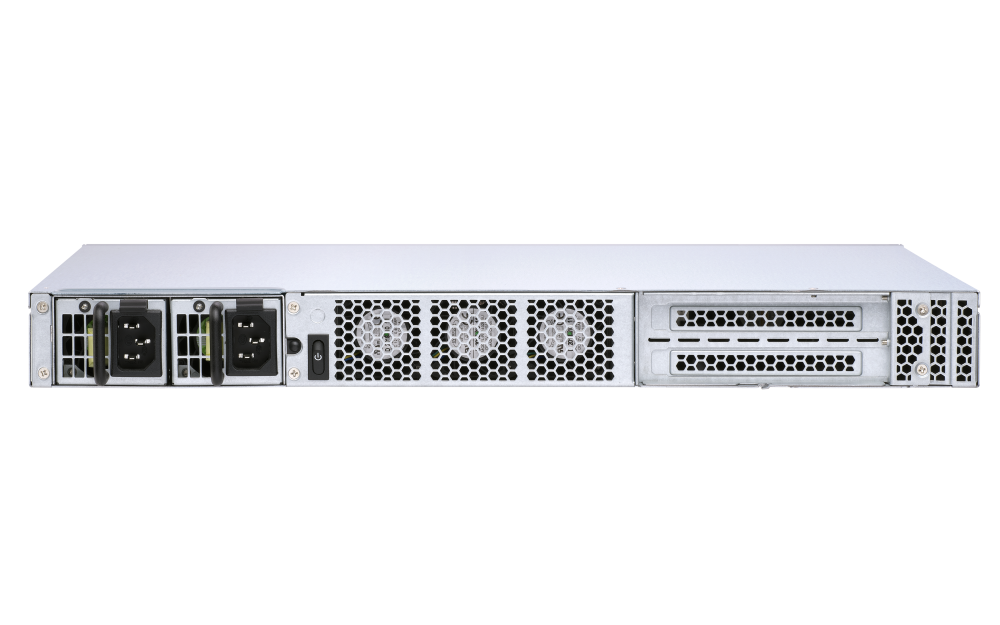

Power supply unit
300W power supplies ensure continuous system uptime.
-
2x 2.5-inch SATA 6Gb/s drive bays
Install hard drives or SSDs to securely store application data.
-
8x RJ45 2.5GbE ports
Connect to switches or other LAN devices.
-
4x 10GbE SFP+ ports
Provides high-speed connectivity to next-generation 10GbE routers, switches, and servers.
-
1x RJ45 Console port
A dedicated RJ45 Console port for host management.
-
1x USB 2.0 port and 1x USB 3.2 Gen 1 port
Connect and use USB devices such as USB cameras with the QuCPE-7012 (external storage devices are not supported).
-
LCD monitor and control buttons
The LCD Monitor displays real-time IP and firmware information of the Switch and QNE Network System to help you understand the network status. The control buttons allow you to directly configure and restart the system.
Intel hardware acceleration technologies boost virtual network performance
Specifically designed for running virtualization applications, the QuCPE-7012 Network Virtualization Premise Equipment adopts multiple Intel hardware acceleration technologies to allow direct hardware access, thus enhancing VM and virtual network transmission performance.
Note: Only QuCPE-7012-D2166NT-64G and QuCPE-7012-D2146NT-32G support Intel® QAT.
-
DPDK (Data Plane Development Kit)
Allows data to bypass the OS Kernel and directly enter user space to offer a double packet transmission rate (Total T/R x L2) and improve overall virtualization application performance.
-
Smart NIC SR-IOV (Single Root I/O Virtualization)
By installing an SR-IOV compatible PCIe SmartNIC, you can allocate bandwidth resources from a physical network card directly to VMs. With traffic bypassing the Hypervisor vSwitch, it helps enhance I/O throughout and network efficiency, ensuring reliable VM applications and reduced CPU overheads.
-
Intel QAT (Intel QuickAssist Technology)
Offloads computationally-intensive compression and improves IPSec cryptography VPN performance.
SD-WAN enables chaining network services
QNE incorporates QNAP’s QuWAN SD-WAN solution (subscription-free) to form encrypted VPN tunnels with other QNAP devices based in multiple sites and achieve multi-site network services chaining. For example, you can automatically create a firewall network (using QuWAN and pfSense VNFs) to enhance WAN security in the Service Composer UI using drag-and-drop.
, ,
Optimize LAN/WAN performance
Service Composer also supports SR-IOV and QuWAN SD-WAN, which greatly improves the WAN transmission of the QuCPE-7012 that runs QuWAN, while also helping users to enjoy high-speed and secure LAN and WAN network transmission at the same time.
Enhanced security
You can automatically create a firewall network (using QuWAN and pfSense VNFs) to enhance WAN security in the Service Composer UI using drag-and-drop.
Smart IT tools for network management efficiency
QNE Network provides comprehensive management features for Smart IT network management.
-
Notification Center
Consolidates QTS system events and alerts, providing a single-app solution for notifications instead of having to configure individual settings in multiple apps. Notifications can be sent through email, SMS, and other communication apps.
-
QuLog Center
Centralizes statistical rankings of error/warning events and access, assisting IT staff in monitoring and responding to potential system risks.
-
Security Center
Provides security management for IT staff, including managing SSL certificates. Other features include automatically detecting history edits to prevent malicious edits.
-
Zabbix
Zabbix is a third-party solution that automatically detects devices and monitors network status. Zabbix provides user-friendly topology and network reporting, suitable for enterprise network management.
Supports third Party Virtual Network Functions
The Application Store and VM Marketplace provide multiple free and premium VNF and applications that users can install on demand.
-
Firewall Software
Virtual firewall software (like pfSense) help enterprises separate or protect local networks and apply multiple security policies.
Learn more: -
Virtual Router
The QuCPE-7012 can be transformed into a security router by installing RouterOS or OpenWrt. You can also create site-to-site VPN tunnels between headquarters and branch offices while securing enterprise network data transmission.
Learn more: ,
Network modules for bandwidth expansion needs
PulM-10G4SF-XL710 |
PulM-10G4SF-MLX |
PulM-25G2SF-MLX |
|
Speed | 10 GbE | 10 GbE | 25 GbE |
Ports | 4 | 4 | 2 |
Interface | SFP+ | SFP+ | SFP28 |
Processor |
Intel
XL710 |
Nvidia
Mellanox ConnectX-4 |
Nvidia
Mellanox ConnectX-4 |
Bus | PCIe 3.0 x8 | PCIe 3.0 x8 | PCIe 3.0 x8 |
Notes
QuCPE QNE Network allocates the full capacity of the 2.5-inch drives to be an Application Volume. VM, Container and vDisk data is stored in the Application Volume by default. If two identical 2.5-inch drives are installed in the QuCPE-7012, they will be configured as RAID 1 by default in QNE Network Edition. All the storage management features in the NAS QTS OS (such as creating storage pools for file storage and Snapshots) are not supported by QuCPE QNE Network Edition.
People Also Viewed
-
QuCPE-3032
Network Virtualization Premise Equipment with an Intel® Atom Refresh quad-core processor, suitable for deploying virtual networks in multiple edge offices
-
QNAP SSL Certificate
QNAP SSL certificates contains identification information and provides protection for establishing a secure channel between a QNAP NAS and web browser.
-
QMiroPlus-201W
Next-Generation Tri-Band Wi-Fi Mesh AC2200 2.5GbE NAS and SD-WAN Router
-
QGD-1602
Smart Edge Switch with 2.5GbE and 10GbE Capability
-
QuCPE-7010
Network Virtualization Premise Equipment with an Intel® Xeon D multi-core processor, suitable for multi-user and multi-tasking business applications.
-
QuCPE-3034
Network Virtualization Premise Equipment with an Intel® Atom Refresh eight-core processor, suitable for deploying virtual networks in multiple edge offices
QuCPE-3032
Network Virtualization Premise Equipment with an Intel® Atom Refresh quad-core processor, suitable for deploying virtual networks in multiple edge offices
QNAP SSL Certificate
QNAP SSL certificates contains identification information and provides protection for establishing a secure channel between a QNAP NAS and web browser.
QMiroPlus-201W
Next-Generation Tri-Band Wi-Fi Mesh AC2200 2.5GbE NAS and SD-WAN Router
QGD-1602
Smart Edge Switch with 2.5GbE and 10GbE Capability
QuCPE-7010
Network Virtualization Premise Equipment with an Intel® Xeon D multi-core processor, suitable for multi-user and multi-tasking business applications.
QuCPE-3034
Network Virtualization Premise Equipment with an Intel® Atom Refresh eight-core processor, suitable for deploying virtual networks in multiple edge offices
-
QNAP Dual-port 10 Gigabit Network Expansion Card for rackmount and tower models (10GBASE-T interface)
Dimension (L × W × H): 6.00 × 10.50 × 26.00 (cm)
Weight: 0.42 (kg)
-
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 14.30 × 19.30 × 5.20 (cm)
Weight: 0.17 (kg)
-
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen2 x4
Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm)
Weight: 0.24 (kg)
-
Dual-port 10GbE Network Adaptor, Intel 700 series Ethernet Controller
Dimension (L × W × H): 11.36 × 6.89 × 1.83 (cm)
Weight: 0.24 (kg)
-
Dual-port 10GbE Network Adaptor, Aquantia AQC113C
Dimension (L × W × H): 10.47 × 1.61 × 6.89 (cm)
Weight: 0.28 (kg)
-
Dual-port SFP28 25Gb network expansion card; Mellanox ConnectX-6 Lx;low-profile formfactor; PCIe Gen4 x8
Dimension (L × W × H): 12.00 × 1.65 × 6.90 (cm)
Weight: 0.15 (kg)
-
Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 6.73 × 6.89 × 2.52 (cm)
Weight: 0.19 (kg)
-
Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 8.13 × 6.89 × 2.52 (cm)
Weight: 0.23 (kg)
-
Quad port 2.5GbE 4-speed Network card
Dimension (L × W × H): 10.46 × 6.89 × 2.41 (cm)
Weight: 0.24 (kg)
-
QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm)
Weight: 0.20 (kg)
-
QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm)
Weight: 0.20 (kg)
-
QNAP Quad port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 4;low profile
Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm)
Weight: 0.23 (kg)
-
320W FSP power supply
Dimension (L × W × H): 30.60 × 9.80 × 13.30 (cm)
Weight: 0.72 (kg)
-
DDR type: DDR4(288PIN)
Capacity: 16GB
Spec: 2G X 4
Frequency: DDR4-2666
Form(PIN): 288PIN
with ECC Supported: ECC/REG
Power Supply: 1.2V
Dram Organization: 2048M*72
Temperature: 0℃~85℃
Environmental Regulation: RoHS
-
DDR type: DDR4(288PIN)
Capacity: 16GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 288PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 2048M*72
Temperature: 0℃~85℃
Environmental Regulation: RoHS
-
DDR type: DDR4(288PIN)
Capacity: 8GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 288PIN
with ECC Supported: ECC/REG
Power Supply: 1.2V
Dram Organization: 1024M*72
Temperature: 0℃~85℃
Environmental Regulation: Halogen Free
CPU | Intel® Xeon® D-2166NT 12-core/24-thread 2.0GHz processor (16.6M Cache; up to 3.0 GHz) |
System Memory | 64GB DDR4 2666MHz ECC RDIMM (4 x 16GB) |
Maximum Memory | 128 GB (UDIMM) or 256GB (RDIMM) |
Memory Slot | 8 x Long-DIMM DDR4 DDR4 2133/2400MHz slots, up to 128 GB (UDIMM) or 256GB (RDIMM) |
Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
Total number of built-in and Pre-configured Ports | 12 |
10GbE SFP+ | 4 |
2.5GbE (RJ45) | 8 |
Network Module Slot | 1 |
PCIe Slot | 1 x PCIe Gen 3 x8 |
Console Port (RJ45) | 1 |
Form Factor | Rackmount, 1U |
Fan | 3 x Cooling fans with smart fan |
USB 2.0 port | 1 |
USB 3.2 Gen 1 port | 1 |
Power | Redundant power 300W, 90V~264V AC |
Intel QAT support | YES |
SR-IOV support | YES |
Intel DPDK support | YES |
Dimension W x D x H (mm) | 430 x 426 x 44.2 mm |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
