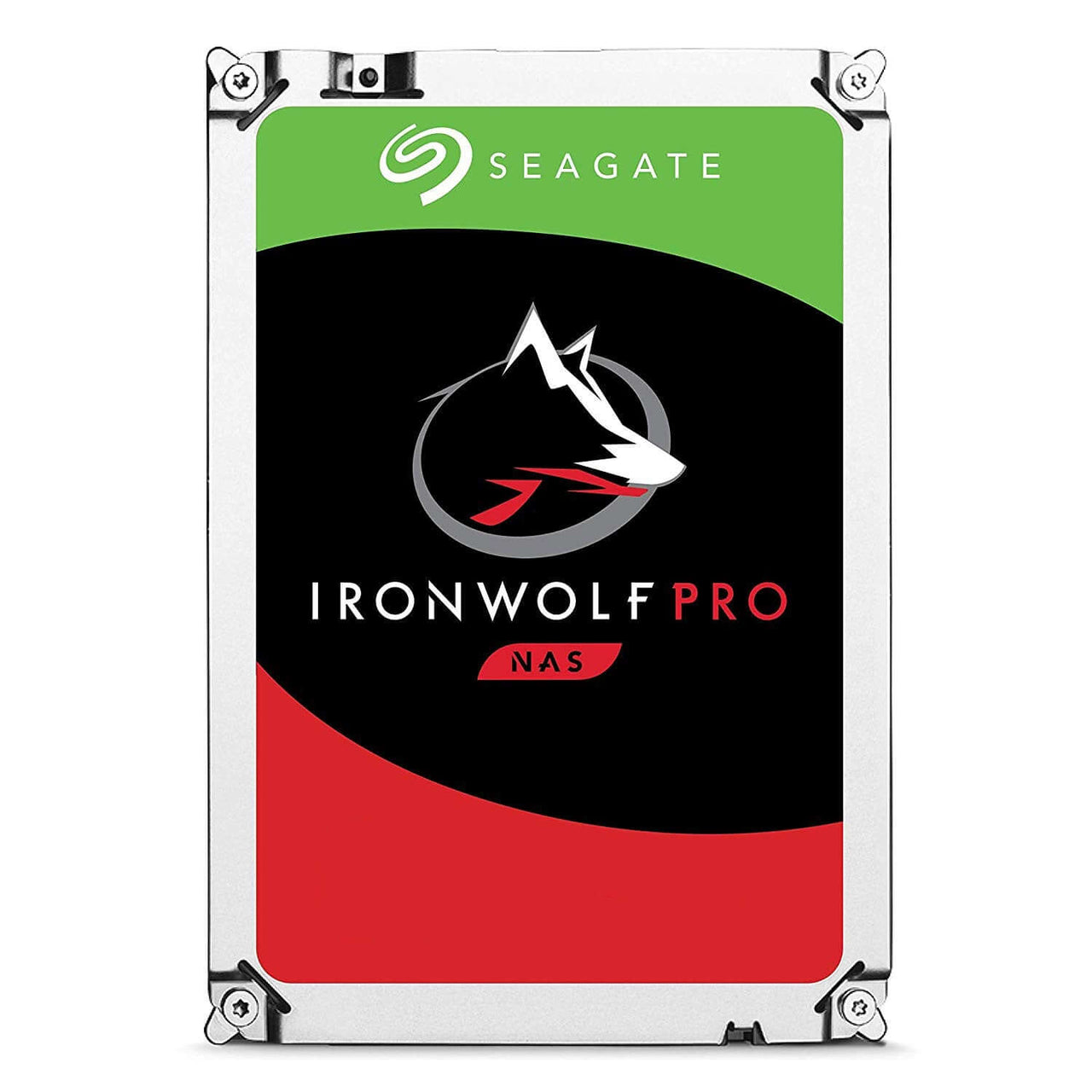

Description, Specifications for Seagate IronWolf Pro 10TB SATA Hard Drive (ST10000NE0008)
- 256 MB cache, 7200 RPM
- 5 Years Limited Warranty
- Includes 2 Years Rescue Data Recovery Service
--
IronWolf Pro is designed for everything business NAS. Get used to tough, ready, and scalable 24×7 performance that can handle multidrive environments across a wide range of capacities.
The IronWolf Pro HDD is a best-fit for the following applications:
- Commercial and enterprise network-attached storage (NAS)
- 1- to 24-bay network attached storage (NAS)
- Backup, archiving, and disaster recovery
- On-premise private cloud
- Virtual storage
Tough. Ready. Scalable.
Optimised for NAS with AgileArray. AgileArray enables dual-plane balancing and RAID optimisation in multi-bay environments, with the most advanced power management possible. Actively protect your NAS with IronWolf Health Management focusing on prevention, intervention, and recovery. High performance means no lag time or downtime for users during workload traffic for the NAS. Seagate leads the competition with the highest-performing NAS drive portfolio
Seagate® Rescue Data Recovery.
IronWolf Pro comes with extra peace of mind for any mechanical, accidental, or natural disaster. With a 90% success rate of in-house recovery, Seagate has your back with a 3-year included Rescue Data Recovery plan.
Rotational Vibration (RV) sensors.
First in its class of drives to include RV sensors to maintain high performance in multi-drive NAS enclosures.
Range of capacities up to 18 TB.
More capacity options means more choices that will fit within the budget. Seagate provides a scalable solution for any NAS use-case scenario.
Do more in multi-user environments.
IronWolf provides a workload rate of 300 TB/year. Multiple users can confidently upload and download data to the NAS server, knowing IronWolf can handle the workload, whether you are a creative professionalor a small business.
Grow Your Business NAS
Designed for always on, always accessible 24×7 performance. Access data on your NAS any time, remotely or on site. 1.2 M hours MTBF, 5-year limited warranty represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs.
Game More With IronWolf Equipped NAS
Modern gaming consoles do double duty as home media servers, but limited storage makes keeping every file locally-stored a challenge. Gamers can move music and videos to a NAS equipped with IronWolf and use it as a storage target for media streaming. Get the most out of your console. With capacities ranging from 1 TB to 18 TB, youll be able to stream all the content you want from your NAS to your game console, and be able to view it on your high definition TV
Dominate The Media
Build your home NAS media empire with IronWolf HDDs. IronWolf leads the class in storage capacity with drives as large as 18 TB, and the performance needed to run high definition content with your NAS. Store thousands of full-length HD films and even more photographs on your private server. Think of it as your home cloud.
Specifications |
18 TB | 16 TB | 14 TB | 12 TB |
| Capacity | 18 TB | 16 TB | 14 TB | 12 TB |
| Standard Model Number | ST18000NE000 | ST16000NE000 | ST14000NE0008 | ST12000NE0008 |
| Interface | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s |
Features |
||||
| Features Drive Bays Supported |
Up to 24-bay | Up to 24-bay | Up to 24-bay | Up to 24-bay |
| Recording Technology | CMR | CMR | CMR | CMR |
| Workload Rate Limit (WRL) | 300 | 300 | 300 | 300 |
| Rotational Vibration (RV) Sensors | Yes | Yes | Yes | Yes |
| Hot-Plug Support | Yes | Yes | Yes | Yes |
| Cache (MB) | 256 | 256 | 256 | 256 |
Reliability/Data Integrity |
||||
| Mean Time Between Failures (MTBF, hours) | 1,200,000 | 1,200,000 | 1,200,000 | 1,200,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.73% | 0.73% | 0.73% | 0.73% |
| Non-recoverable Read Errors per Bits Read, Max | 1 per 10E15 | 1 per 10E15 | 1 per 10E15 | 1 per 10E15 |
| Power-On Hours (per year) | 8,760 | 8,760 | 8,760 | 8,760 |
| Sector Size (Bytes per Logical Sector) | 512E | 512E | 512E | 512E |
| Rescue Services | Yes | Yes | Yes | Yes |
| Limited Warranty (years) | 5 | 5 | 5 | 5 |
Performance |
||||
|
Spindle Speed (RPM) |
7,200 |
7,200 |
7,200 |
7,200 |
|
Interface Access Speed (Gb/s) |
6.0, 3.0, 1.5 |
6.0, 3.0, 1.5 |
6.0, 3.0, 1.5 |
6.0, 3.0, 1.5 |
|
Max. Sustained Transfer Rate OD (MB/s) |
260MB/s |
255MB/s |
255MB/s |
240MB/s |
|
Average Latency (ms) |
4.16 |
4.16 |
4.16 |
4.16 |
|
Rotational Vibration @ 10-1,500 Hz (rad/s2) |
12.5 |
12.5 |
12.5 |
12.5 |
Power Consumption |
|
|
|
|
|
Startup Current, Typical (12V, A) |
2 |
2 |
2 |
2 |
|
Idle Power, Average (W) |
5.2 |
5 |
5 |
5 |
|
Average Operating Power (W) |
8 W |
7.6 W |
7.6 W |
7.8 W |
|
Standby Mode, Typical (W) |
1.25 |
1 |
1 |
1 |
|
Sleep Mode, Typical (W) |
1 |
1 |
1 |
1 |
|
Power Supply Requirements |
+12 V and +5 V |
+12 V and +5 V |
+12 V and +5 V |
+12 V and +5 V |
Environmental/Temperature |
|
|
|
|
|
Operating (ambient, min °C) |
5 |
5 |
5 |
5 |
|
Operating (drive reported temperature °C) |
65 |
60 |
60 |
60 |
|
Non-operating (ambient, min °C) |
-40 |
-40 |
-40 |
-40 |
|
Non-operating (ambient max °C) |
70 |
70 |
70 |
70 |
Environmental/Acoustics |
|
|
|
|
|
Vibration, Non-operating: 10 Hz to 500 Hz (Grms) |
2.27 |
2.27 |
2.27 |
2.27 |
|
Acoustics, Idle (typical, measured in Idle 1 state) |
2.8 bels |
2.8 bels |
2.8 bels |
2.8 bels |
|
Acoustics, Seek (typical) |
3.2 bels |
3.2 bels |
3.2 bels |
3.2 bels |
Environmental/Shock |
|
|
|
|
|
Shock, Operating 2 ms (Read/Write) (Gs) |
50/50 Gs |
50/50 Gs |
50/50 Gs |
50/50 Gs |
|
Shock, Non-operating, 1 ms and 2 ms (Gs) |
200 |
200 |
200 |
200 |
Physical |
|
|
|
|
|
Height (mm/in) |
26.11 mm/1.028 in |
26.11 mm/1.028 in |
26.11 mm/1.028 in |
26.11 mm/1.028 in |
|
Width (mm/in, max) |
101.85 mm/4.01 in |
101.85 mm/4.01 in |
101.85 mm/4.01 in |
101.85 mm/4.01 in |
|
Depth (mm/in, max) |
146.99 mm/5.787 in |
146.99 mm/5.787 in |
146.99 mm/5.787 in |
146.99 mm/5.787 in |
|
Weight (g/lb, typical) |
670 g/1.477 lb |
670 g/1.477 lb |
670 g/1.477 lb |
670 g/1.477 lb |
|
Carton Unit Quantity |
20 |
20 |
20 |
20 |
|
Cartons per Pallet / Cartons per Layer |
40/8 |
40/8 |
40/8 |
40/8 |
Specifications |
10 TB | 8 TB | 6 Tb | 4 TB |
| Capacity | 10 TB | 8 TB | 6 Tb | 4 TB |
| Standard Model Number | ST10000NE0008 | ST8000NE001 | ST6000NE000 | ST4000NE001 |
| Interface | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s |
Features |
||||
| Features Drive Bays Supported |
Up to 24-bay | Up to 24-bay | Up to 24-bay | Up to 24-bay |
| Recording Technology | CMR | CMR | CMR | CMR |
| Workload Rate Limit (WRL) | 300 | 300 | 300 | 300 |
| Rotational Vibration (RV) Sensors | Yes | Yes | Yes | Yes |
| Hot-Plug Support | Yes | Yes | Yes | Yes |
| Cache (MB) | 256 | 256 | 256 | 128 |
Reliability/Data Integrity |
||||
| Mean Time Between Failures (MTBF, hours) | 1,200,000 | 1,200,000 | 1,200,000 | 1,200,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.73% | 0.73% | 0.73% | 0.73% |
| Non-recoverable Read Errors per Bits Read, Max | 1 per 10E15 | 1 per 10E15 | 1 per 10E15 | 1 per 10E15 |
| Power-On Hours (per year) | 8,760 | 8,760 | 8,760 | 8,760 |
| Sector Size (Bytes per Logical Sector) | 512E | 512E | 512E | 512E |
| Rescue Services | Yes | Yes | Yes | Yes |
| Limited Warranty (years) | 5 | 5 | 5 | 5 |
Performance |
||||
|
Spindle Speed (RPM) |
7,200 |
7,200 |
7,200 |
7,200 |
|
Interface Access Speed (Gb/s) |
6.0, 3.0, 1.5 |
6.0, 3.0, 1.5 |
6.0, 3.0, 1.5 |
6.0, 3.0, 1.5 |
|
Max. Sustained Transfer Rate OD (MB/s) |
240MB/s |
240MB/s |
220MB/s |
220MB/s |
|
Average Latency (ms) |
4.16 |
4.16 |
4.16 |
4.16 |
|
Rotational Vibration @ 10-1,500 Hz (rad/s2) |
12.5 |
12.5 |
12.5 |
12.5 |
Power Consumption |
|
|
|
|
|
Startup Current, Typical (12V, A) |
2 |
2 |
2 |
2 |
|
Idle Power, Average (W) |
5 |
7.06 |
7.06 |
5.5 |
|
Average Operating Power (W) |
7.8 W |
9.2 W |
8.1 W |
9 W |
|
Standby Mode, Typical (W) |
0.8 |
1 |
1 |
1 |
|
Sleep Mode, Typical (W) |
0.8 |
1 |
1 |
1 |
|
Power Supply Requirements |
+12 V and +5 V |
+12 V and +5 V |
+12 V and +5 V |
+12 V and +5 V |
Environmental/Temperature |
|
|
|
|
|
Operating (ambient, min °C) |
5 |
5 |
5 |
5 |
|
Operating (drive reported temperature °C) |
60 |
60 |
60 |
60 |
|
Non-operating (ambient, min °C) |
-40 |
-40 |
-40 |
-40 |
|
Non-operating (ambient max °C) |
70 |
70 |
70 |
70 |
Environmental/Acoustics |
|
|
|
|
|
Vibration, Non-operating: 10 Hz to 500 Hz (Grms) |
2.27 |
2.27 |
3 |
3 |
|
Acoustics, Idle (typical, measured in Idle 1 state) |
2.8 bels |
1.8 bels |
2.7 bels |
2.7 bels |
|
Acoustics, Seek (typical) |
3bels |
2.8 bels |
2.7 bels |
2.8 bels |
Environmental/Shock |
|
|
|
|
|
Shock, Operating 2 ms (Read/Write) (Gs) |
70/40 Gs |
70/40 Gs |
70/40 Gs |
70/40 Gs |
|
Shock, Non-operating, 1 ms and 2 ms (Gs) |
250 |
250 |
250 |
300 |
Physical |
|
|
|
|
|
Height (mm/in) |
26.11 mm/1.028 in |
26.11 mm/1.028 in |
26.11 mm/1.028 in |
26.11 mm/1.028 in |
|
Width (mm/in, max) |
101.85 mm/4.01 in |
101.85 mm/4.01 in |
101.85 mm/4.01 in |
101.85 mm/4.01 in |
|
Depth (mm/in, max) |
146.99 mm/5.787 in |
146.99 mm/5.787 in |
146.99 mm/5.787 in |
146.99 mm/5.787 in |
|
Weight (g/lb, typical) |
690 g/1.521 lb |
722 g/1.59 lb |
705 g/1.55 lb |
643 g/1.42 lb |
|
Carton Unit Quantity |
20 |
20 |
20 |
20 |
|
Cartons per Pallet / Cartons per Layer |
40/8 |
40/8 |
40/8 |
40/8 |
