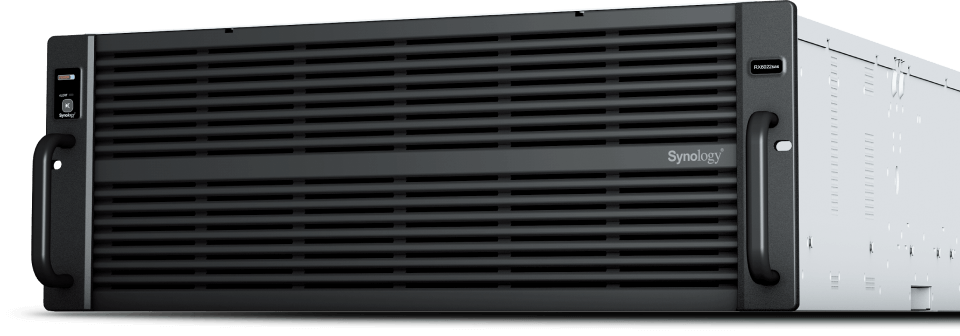

Description, Specifications for Synology RX6022sas Expansion Unit
Massively expand your storage
Maximize the potential of your cold or warm storage deployment by adding 60 additional drives to your server in minutes. With support for up to four expansion units, you can easily accommodate massive storage growth without incurring in costly disruptions. Support for SAS multipathing allows you to achieve up to twice the performance when deploying multiple expansion units, while online storage expansion and comprehensive storage management tools in Synology DiskStation Manager (DSM) simplify initial configuration and management down the road.
Designed for maximum uptime
Excel in tackling large-scale applications while maintaining the highest level of service availability through clever hardware solutions.
SAS multipathing
Maximize resiliency against hardware malfunctions with SAS multipathing. Thanks to alternate physical paths, the system can reroute data when the primary interface or connection fails.
Redundant components
Modular drive trays and system fans enable easy and quick replacement, reducing the impact of maintenance on service availability. Redundant power supply units keep your data online in the event of power source failure.
Plug-and-play deployment
Minimize downtime when expanding your storage infrastructure using online storage expansion, which allows you to add new volumes or expand RAID volumes on the RX6022sas without affecting services on the HD6500.
Achieve peak performance with Synology drives
Synology finely tunes drive firmware to ensure maximum integration with Synology hardware and software. Backed by a testing regimen that replicates heavy data center use, Synology drives deliver optimal performance and reliability even when tackling the most demanding applications.
Synology has you covered
The RX6022sas is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.
Notes:
-
The warranty period starts from the date of purchase as stated on your purchase receipt. Visit for more information.
|
Hardware Specifications
|
||
|---|---|---|
|
Applied Models
|
||
|
Applied Models
|
Supports creating volumes across different units | HD6500 |
| Notes | To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. | |
|
Storage
|
||
|
Storage
|
Drive Bays | 60 |
| Compatible Drive Type* | 3.5' SAS HDD | |
| Maximum Internal Raw Capacity | 960 TB (16 TB drive x 60) (Capacity may vary by RAID types) | |
| Hot Swappable Drive | ||
| Notes |
|
|
|
External Ports
|
||
|
External Ports
|
Expansion Port | 2 |
|
Appearance
|
||
|
Appearance
|
Size (Height x Width x Depth) | 176 mm x 438 mm x 985 mm |
| Size (Height x Width x Depth) (with server ears) | 176 mm x 482 mm x 1020 mm | |
| Weight | 33.9 kg | |
| Rack Installation Support* | 4-post 19' rack (Synology Rail Kit - ) | |
|
Power
|
||
|
Power
|
Power Recovery | Synchronized with the Synology RackStation |
| Power Supply Unit / Adapter | 1200 W | |
| AC Input Power Voltage | 200V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* |
811.8 W (Access)
231 W (HDD Hibernation) |
|
| British Thermal Unit |
2768.24 BTU/hr (Access)
787.71 BTU/hr (HDD Hibernation) |
|
| Redundant Power Supply (for RP model) | ||
| Notes | Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s). | |
|
Temperature
|
||
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Others
|
||
|
Others
|
System Fan | 80 mm x 80 mm x 4 pcs |
| Easy Replacement System Fan | ||
| Noise Level* | 61.7 dB(A) | |
| Notes | Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | |
|
Certification
|
||
|
Certification
|
|
|
|
Warranty
|
||
|
Warranty
|
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
|
Environment & Packaging
|
||
|
Environment
|
||
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
||
|
Packaging Content
|
|
|
| 3.5' SAS HDD: |
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our for professional advice.
