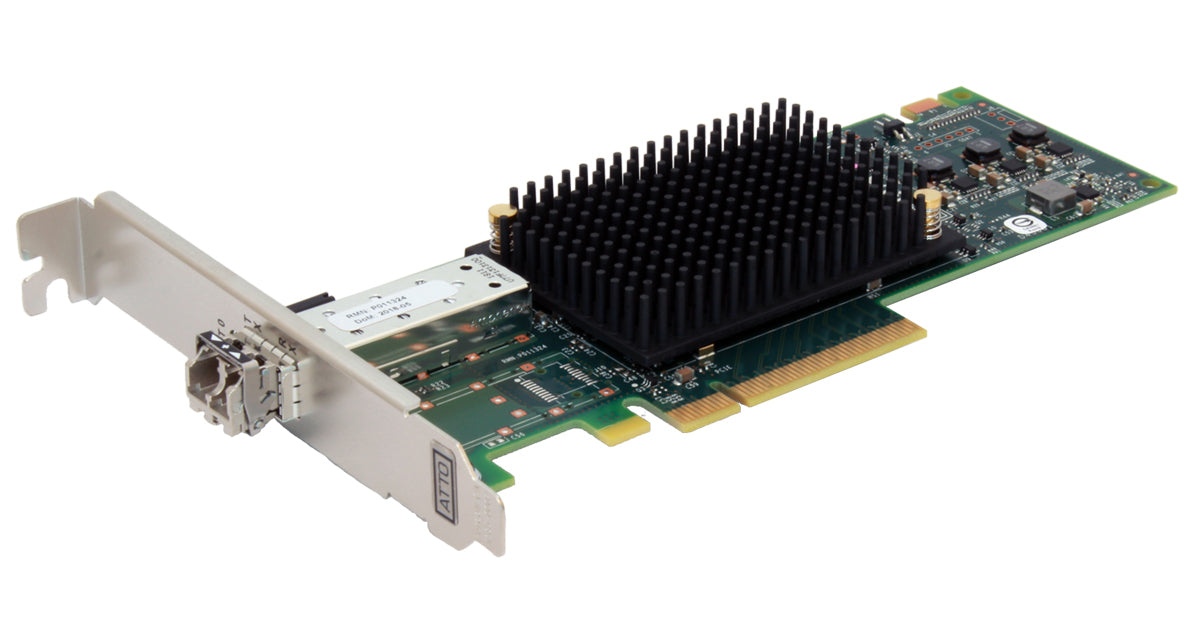

Description, Specifications for 16Gb Celerity (model 161P) Single-Port Fibre Channel Adapter (SFP included)
CTFC-161P-000
The ATTO Celerity FC-161P provides basic switch connectivity for time-tested 16Gb/s Fibre Channel SAN installations. Delivering up to 3,200 MB/s per channelin a single PCIe expansion slot,itis well-suited for high performance computing, virtualization, and other IOP-driven environments typically found in enterprise Fibre Channel SANs
Technical Features
- Single-channel 16-Gigabit Gen 6 Fibre Channel HBA
- 3,200MB/s throughput per port in full-duplex mode
- Backward compatible with 8Gb/s and 4Gb/s Fibre Channel Products
- Includes one 16Gb/s LC SFP+ transceivers
Bus Specifications
- x8 PCI Express 3.0 host interface
External Connectivity
- Full height brackets
Operating System Support
- Windows, Windows Server, Linux, illumos, VMware, FreeBSD, macOS driver support
Dimensions
- Length 6.595, Height 2.709
Operating Power (Typical)
- 9.6W
Operating Power (Typical)
- Hardware Environment: 0-55 C Temperature / 10 -90% non-condensing Humidity
- Storage Environment: 40-70C (-40-157F) Temperature / 5 -95% non-condensing Humidity
Compliance
- RoHS (meet EU and China standards)
- Storage Environment: 40-70C (-40-157F) Temperature / 5 -95% non-condensing Humidity
Warranty
-
3-year standard warranty
-
Extended warranty plans
available for purchase
All finished good 161P SKUs include: ATTO Celerity Fibre Channel adapter, (1) LC SFP+ optical module, low profile bracket, ATTO corporate brochure, getting started guide
For more information click here
