Description, Specifications for MagStor 1U LTO9 Thunderbolt 3 Rackmount Drive RM LTO-9 TAA TRB3-1U-HL9
Why MagStor? Click here to find out.
The first and only patented TB3 to LTO Tape Solution available.
Why is this important?
Only MagStor holds the patent on
Thunderbolt to LTO tape backup technology
. Dont risk your investment on potentially obsolete products from companies that dont license the MagStor patent.
According to
the World Intellectual Property Organization (WIPO)
, patent protection means that the invention cannot be commercially made, used, distributed, imported, or sold by others without the patent owner's consent.
Comes with a Free license for Hedge LTFS software Canister for MacOS and Windows ($399 Value) with support for MagStor Certified NanoPure Media. Let us know if you already have software or prefer using a different one and we canprovidea discount instead.
Overview
The MagStor TRB3-1U-HL9 1U Rackmount (RM)unit features one or two LTO9(H H)Half Height tape drives connected via aThunderbolt 3 / USB-C port as a convenientconnection to your desktop MAC or PC computer.
Thunderbolt 3devices are fully backward compatible with previous generations ofThunderbolt technology. We recommend the Apple MMEL2AM/A adapter with those using older Thunderbolt ports.
Features
1x18TB LTO9 (HH) Half-HeightTape Drive
Add 2nd drive for
TRB3-1U-HL9-DUAL configuration
300 MB/s Read/Write Speeds
30 Year LTO Media Archive Life
Standard 1U 19" RM
2x Thunderbolt 3 Ports
2x SFF-8644 SAS
ports
to daisy chain up to four SAS external devices
TAA Compliant (drives are made in Japan)
3 Year Warranty
(Upgrade to 5 Years US/CAN)
Apple Certified
Intel Certified
Technical Specifications
Interface:
Two Thunderbolt 3 40 Gb/s interface ports allow connectionto a MAC or PC with aThunderbolt 3 compatible USB-C Port.
Speed:
LTO9 (HH)Half Height Tape drive with up to 300 MB/sec native transfer rate per drive
Data Cartridge:
Read/Write LTO9 data cartridge; 18TB native storage capacity
Read/Write LTO8 data cartridge; 12TB native storage capacity
Power Supply:
100/240 VAC 50/60 Hz, 300W GOLD Rated auto switching
Dimensions & Weight:
33 x 23 x 11 inches (L x H x W) / 24 lbs
Physical Dimensions
:
431mm W x 476mm D
Software Compatibility:
- Hedge Canister(Included)
- IperiusBackup
- myLTO
- PreRollPost
- Retrospect
- StorageDNA
- Third-Party TAR based backup software, Acronis etc.
- Veeam
- YoYotta LTFS
Supported Operating Systems :
- MAC OSX 10.12 or higher
- Intel or M1,M2CPU
- Windows 10,11
MagStor TRB3-1U-HL9 includes:
- MagStor Single LTO9 HH Tape Drive in 1U Rackmount Thunderbolt-3 Enclosure
- Rack Mounting Kit
- US Power Cable
-
One 2 Meter MagStor (Intel Certified) Thunderbolt 3Active 40 Gb/s cable
A few things you should know about LTO-9 Media Initialization.
MagStor
is a registered trademark of MagStor Inc
Thunderbolt
3 is a trademark ofIntel
MAC is a trademark of Apple
*Pricing shown is for the US. Please click here for international distributors.

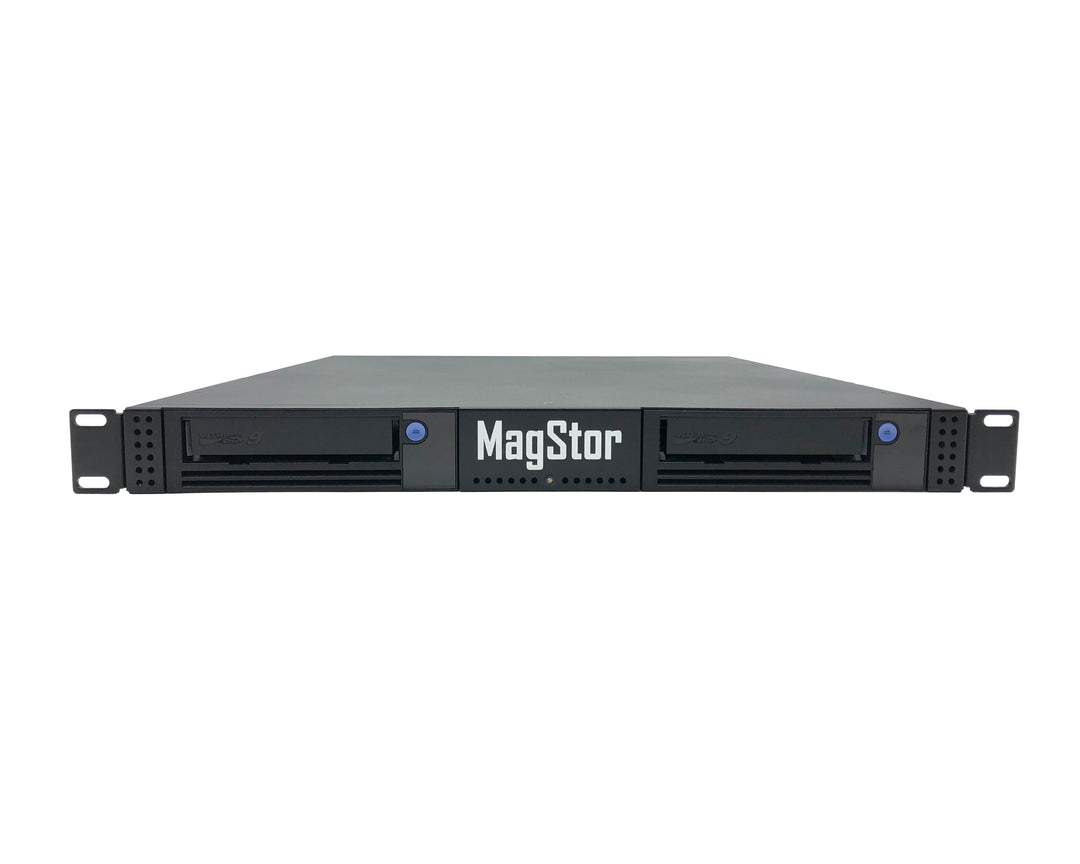

* The picture on top is showing a dual drive configurationTRB3-1U-HL9-DUAL
