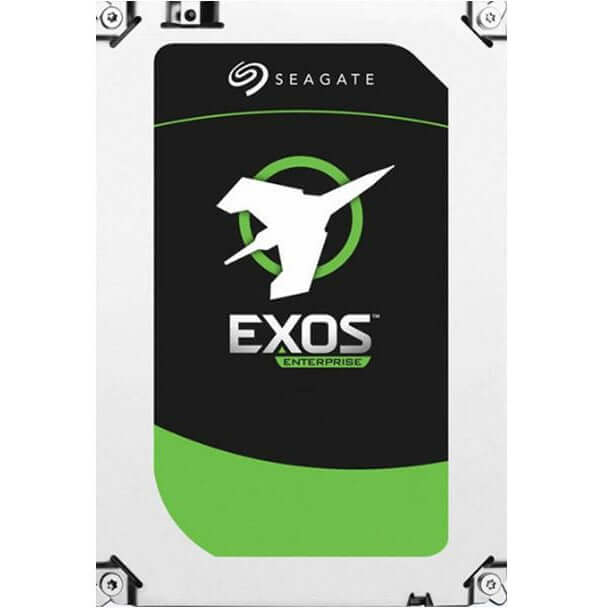

Description, Specifications for Seagate Exos X16 16TB SATA Hard Drive
- 256 MB Cahce, 7200 RPM
- Enterprise Data Center Drives
- 5 Years Limited Warranty
--
Seagate Exos are Enterprise Server Data Center drives available in both SATA and SAS interface. Formats of 512e and 4Kn are available, along with Various Encryptions
Overview
Trusted. Efficient. Versatile.
Why Choose Exos E?
Trusted
With a workload rating of 550TB per year, Exos E drives are a powerhouse engineered for the most demanding storage environments.
Efficient
The on-demand PowerChoice features and best-in-class rotational vibration tolerance helps improve drive efficiency and keep costs low.
Versatile
Exos E drives support 512N legacy systems and are built to suit a multitude of applications.
Enhanced Performance
 |
 |
 |
|
| Product | Exos 7E2 | Exos 7E8 | Exos X |
| Capacity | 1,2TB | 4,6,8TB | 10,12, 16TB |
| Sequential Data Rate | 194MB/s | 194MB/s | 261MB/s |
| MTBF | 2M hours | 2M hours | 2.5M hours |
| Workload | 500TB/yr | 550TB/yr | 550TB/yr |
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore D2D, virtual tape
- Centralized surveillance
Maximum Storage Capacity for Highest Rack Space Efficiency
- 14TB per drive 1 for 40% more petabytes per rack
- Industry's lowest power and weight for optimum data center TCO
- Highest 14TB hard drive performance with enhanced caching, making it perfect for big data applications
- Hyperscale SATA model tuned for large data transfers
- PowerBalance feature optimizes IOPS/Watt
- Helium sealed-drive design with no porosity and uniform density
- Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
- Digital environmental sensors for measuring internal pressure, helping to ensure high reliability, performance, and quality
- Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
- Proven enterprise-class reliability backed by 2.5M-hr MTBF rating
Specifications
|
Model # *Vary as per Specifications |
Capacity | Interface | RPM Class | Series | Platform | Format | Encryption | Cache |
|---|---|---|---|---|---|---|---|---|
| ST16000NM001G ST16000NM002G ST16000NM003G ST16000NM004G ST16000NM009G |
16TB | SATA 6Gb and SAS 12Gb | 7200 rpm | X16 | Helium | 4Kn,512e | SED,SED/FIPS | 256MB |
| ST14000NM001G ST14000NM002G ST14000NM003G ST14000NM004G ST14000NM0012G |
14TB | SATA 6Gb and SAS 12Gb | 7200 rpm | X16 | Helium | 4Kn,512e | SED,SED/FIPS | 256MB |
|
ST12000NM007G |
12TB | SATA 6Gb and SAS 12Gb | 7200 rpm | X12 | Helium | 4Kn,512e | SED | 256MB |
|
ST10000NM0016 |
10TB | SATA 6Gb and SAS 12Gb | 7200 rpm | X10 | Helium | 4Kn,512e | SED,SED/FIPS | 256MB |
| ST8000NM0016 ST8000NM0206 ST8000NM0156 |
8TB | SATA 6Gb and SAS 12Gb | 7200 rpm | X10 | Helium | 4Kn,512e | SED,SED/FIPS | 256MB |
| ST8000NM000A ST8000NM016A ST8000NM004A ST8000NM008A |
8TB | SATA 6Gb and SAS 12Gb | 7200 rpm | 7E8 | AIR | 4Kn,512e | SED,SED/FIPS | 256MB |
| ST6000NM030A ST6000NM034A ST6000NM026A ST6000NM022A ST6000NM033A ST6000NM029A ST6000NM025A ST6000NM037A ST6000NM021A ST6000NM003A ST6000NM002A |
6TB | SATA 6Gb and SAS 12Gb | 7200 rpm | 7E8 | AIR | 256MB | ||
| ST4000NM000A ST4000NM006A ST4000NM013A ST4000NM003A ST4000NM007A ST4000NM015A ST4000NM002A ST4000NM010A ST4000NM012A ST4000NM005A ST4000NM011A ST4000NM014A ST4000NM001A ST4000NM004A |
4TB | SATA 6Gb and SAS 12Gb | 7200 rpm | 7E8 | AIR | 256MB | ||
| ST2000NM005A ST2000NM002A ST2000NM004A ST2000NM001A ST2000NM003A ST2000NM007A ST2000NM000A |
2TB | SATA 6Gb and SAS 12Gb | 7200 rpm | 7E8 | AIR | 256MB | ||
| ST1000NM000A ST1000NM002A ST1000NM001A |
1TB | SATA 6Gb and SAS 12Gb | 7200 rpm | 7E8 | AIR | 256MB |
FAQ
What is the Highest Capacity of Seagate Exos drives available ?
As in 2019 , 16TB is the highest capacity available. 18TB has been Announced already and will be available by Q1 2020.
Can I use an Exos Drive in Servers, NAS and Surveillance ?
Yes, these are the highest grade Data center drives and can be used anywhere.
What is the meaning of Limited Warranty ?
Limited warranty means that each passing year, you got partial value of your drives back. If its 5 years limited warranty, you get full replacement in first year, 75% value in second year and 50% Value in the third year.
What interface are Exos Drives Available in ?
Seagate Exso is available in SATA and SAS.
Are there 4K native drives in Exos ?
Yes, you can order 512e or 4K native drives in both SATA and SAS.
What are the encryptions available on Exos Drives ?
You can have TCG encryption, Secure Erase or TCG encryption with FIPS in SAS drives. Our price list doesn't have all the models, but ask us for what your requirement is and we will be able to offer an appropriate drive.
What is Constellation ?
Constellation used to be the Enterprise grade hard drive series which was replaced by Exos.
