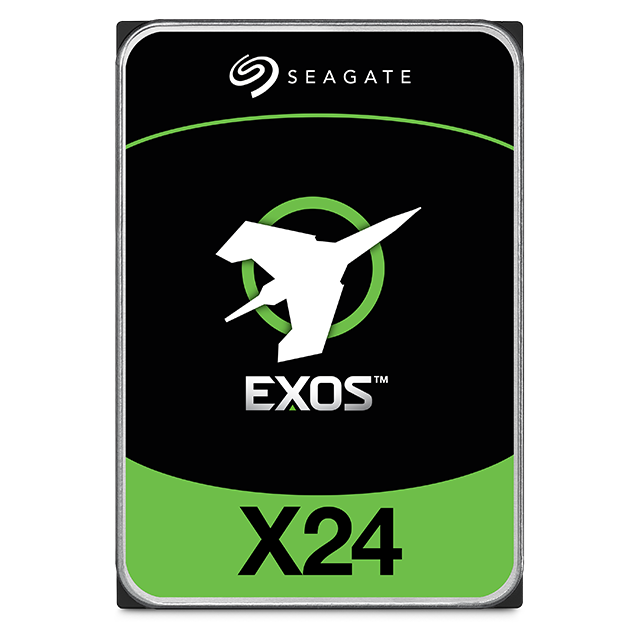

Description, Specifications for Seagate Exos X24 20TB SATA Drive
Seagate X24 drives are the highest capacity drives available today in Seagate Product range.
- 12 TB, 16 TB, 20 TB and 24 TB capacities
- SATA and SAS
- 2.5M hour MTBF
- 5 years limited warranty
- Fast Format ( format as 512e or 4Kn)
- Various encryptions available
- 7200 RPM CMR Drives
Buy Seagate Exos X24 20TB with PNP in Dubai
PNP is one of the largest Seagate partner for high-end enterprise-grade drives in the UAE. Our distinguished expertise in storage solutions has garnered us several accolades. Opt for genuine Seagate products through PNP.
Specifications of Seagate Exos X24 SATA Drives available in Dubai
| Specifications | SATA 6Gb/s | |||
| Capacity | 24TB | 20TB | 16TB | 12TB |
| Standard Model - Seagate Instant Secure Erase (ISE) 1 | ST24000NM002H | ST20000NM002H | ST16000NM002H | ST12000NM002H |
| SED Model2 | ST24000NM001H | ST20000NM001H | ST16000NM001H | ST12000NM001H |
| SED-FIPS2 | — | — | — | — |
| FEATURES | ||||
| Helium Sealed-Drive Design | Yes | Yes | Yes | Yes |
| Conventional Magnetic Recording (CMR) | Yes | Yes | Yes | Yes |
| Protection Information (T10 DIF) | — | — | — | — |
| Super Parity | Yes | Yes | Yes | Yes |
| Low Halogen | Yes | Yes | Yes | Yes |
| PowerChoice™ Idle Power Technology | Yes | Yes | Yes | Yes |
| PowerBalance™ Power/Performance Technology | Yes | Yes | Yes | Yes |
| Hot-Plug Support1 | Yes | Yes | Yes | Yes |
| Cache, Multisegmented (MB) | 512 | 512 | 512 | 512 |
| Organic Solderability Preservative | Yes | Yes | Yes | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes | Yes | Yes | Yes |
| RELIABILITY/DATA INTEGRITY | ||||
| Mean Time Between Failures (MTBF, hours) | 2500000hr | 2500000hr | 2500000hr | 2500000hr |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% | 0.35% | 0.35% | 0.35% |
| Nonrecoverable Read Errors per Bits Read | <1 in 10E15 | <1 in 10E15 | <1 in 10E15 | <1 in 10E15 |
| Power-On Hours per Year (24×7) | 8760 | 8760 | 8760 | 8760 |
| 512e Sector Size (Bytes per Sector) | 512 | 512 | 512 | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4096 | 4096 | 4096 | 4096 |
| Limited Warranty (years) | 5 | 5 | 5 | 5 |
| PERFORMANCE | ||||
| Spindle Speed (RPM) | 7200RPM | 7200RPM | 7200RPM | 7200RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0 | 6.0, 3.0 | 6.0, 3.0 | 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s,MiB/s) | 285/272 | 285/272 | 285/272 | 285/272 |
| Random Read/Write 4K QD16 WCD (IOPS) | 168/550 | 168/550 | 168/550 | 168/550 |
| Average Latency (ms) | 4.16ms | 4.16ms | 4.16ms | 4.16ms |
| Interface Ports | Single | Single | Single | Single |
| Rotation Vibration @ 20-1500 Hz (rad/sec²) | 12.5 | 12.5 | 12.5 | 12.5 |
| POWER | ||||
| Idle A (W) Average | 6.3 | 6.3 | 6.3 | 6.3 |
| Max Operating, Random Read/Write 4K/16Q (W) | 8.9, 7.1 | 8.9, 7.1 | 8.9, 7.1 | 8.9, 7.1 |
| Power Supply Requirements | +12V and +5V | +12V and +5V | +12V and +5V | +12V and +5V |
| ENVIRONMENTAL | ||||
| Temperature, Operating (°C) | 10°C – 60°C | 10°C – 60°C | 10°C – 60°C | 10°C – 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 | 2.27 | 2.27 | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 40Gs | 40Gs | 40Gs | 40Gs |
| Shock, Nonoperating 2ms (Gs) | 200 | 200 | 200 | 200 |
| PHYSICAL | ||||
| Height (mm/in, max) 4 | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in |
| Width (mm/in, max) 4 | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in |
| Depth (mm/in, max) 4 | 147mm/5.787in | 147mm/5.787in | 147mm/5.787in | 147mm/5.787in |
| Weight (gm/lb) | 685g/1.51lb | 685g/1.51lb | 685g/1.51lb | 685g/1.51lb |
| Carton Unit Quantity | 20 | 20 | 20 | 20 |
| Cartons per Pallet/Cartons per Layer | 40 / 8 | 40 / 8 | 40 / 8 | 40 / 8 |
