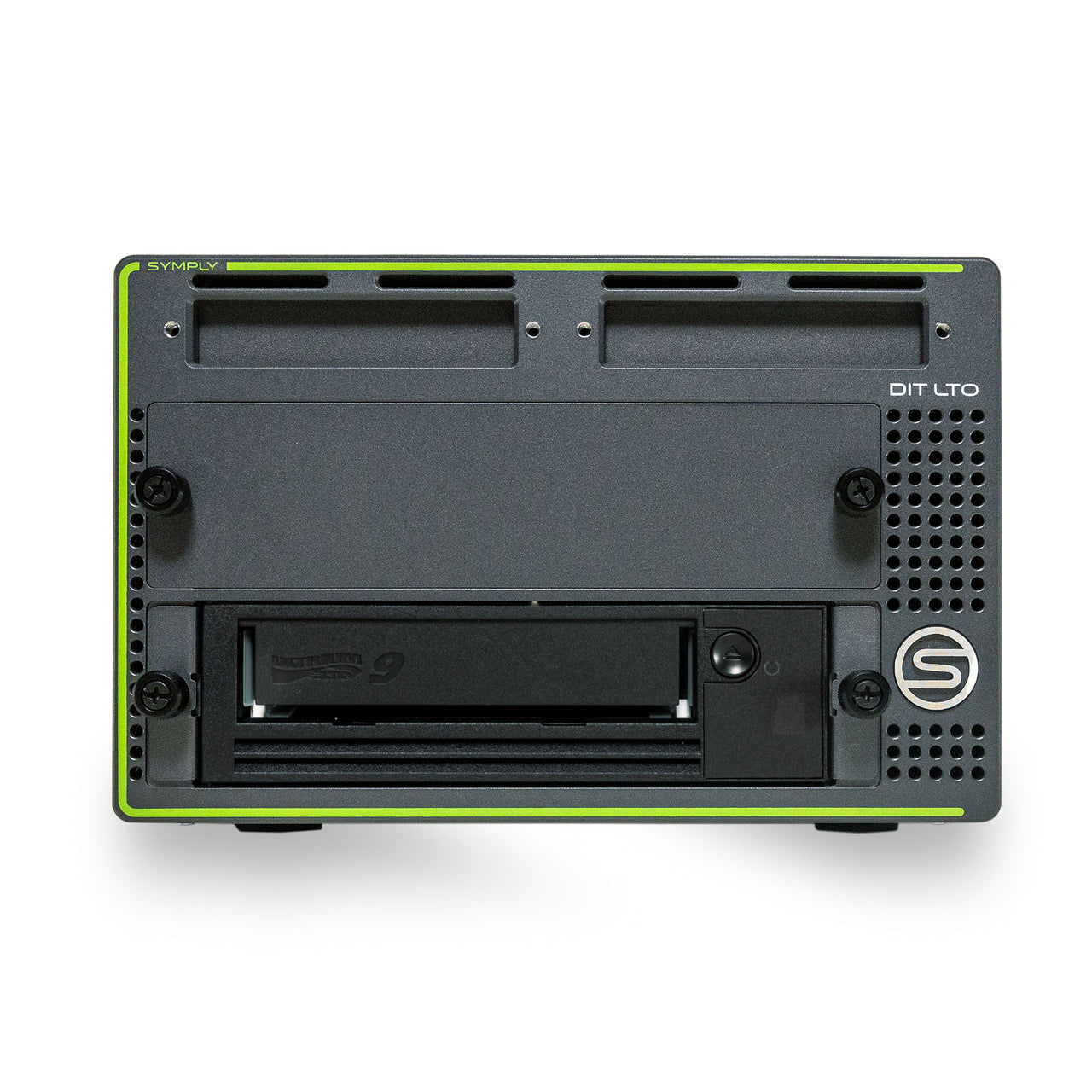

Description, Specifications for SymplyDIT LTO-9 XTH Desktop 18/45TB Thunderbolt 3 & SAS HH 1xLTO-9
SymplyDIT LTO is a unique full-featured archive and transfer system designed specifically for on-set and DIT use with features that can enhance every production and post production pipeline.
SymplyDIT LTO is based on our advanced desktop SymplyPRO LTO product line featuring a rugged metal alloy enclosure, whisper-quiet fan, and premium power supply. Then we added multi-access technology that combines docking support for Atomos media along with any 2.5” SSD for fast all-in-one DIT operations.
Unlike others, this is not a repurposed LTO DIT system or a highly design-compromised tape product. The SymplyDIT LTO was designed by working with media professionals and hearing their needs and wants. We took what they asked for, added high-quality components, and SymplyDIT LTO was born.
Each SymplyDIT LTO system includes two Thunderbolt 3 ports for daisy chaining, and fast device charging. They also include a SAS expansion port and SAS host connectivity port in case you need to connected other SAS devices to your Thunderbolt-equipped computer, or use it with a non-Thunderbolt workstation
All SymplyDIT LTO configurations feature Linear Tape File System (LTFS) support. Allowing simple drag and drop file operation similar to a conventional hard drive. LTFS can reduce the need for backup or archive software, and allows users to easily interchange data using LTO cartridges or copying data to and from hard drives or SSDs.
Configurations are available with LTO-7, LTO-8 and LTO-9 half-height drives, and now the latest full height LTO-9 drive with native 18TB raw capacity and read/write speeds of up to 400MB/s. A perfect match for offloading camera cards and SSDs.
SymplyDIT LTO includes the feature rich (Advanced Tape Operations and Management) software that makes operation and maintenance easy. SymplyDIT LTO systems are also compatible with popular backup and archive utilities for macOS and Windows including YoYotta LTFS, Hedge Canister, Xendata, Tiger Technology Bridge, Retrospect and Archiware P5.
Features and Benefits
- Desktop design combines LTO tape and removable 2.5” SSD for fast all-in-one DIT storage operations
- Dock Atomos Master caddies and SSDs from Hyperdeck Shuttle
- LTO- 7, LTO-8, and LTO-9 configurations in desktop to meet every user need
- Advanced metal alloy enclosure with whisper quiet fan and premium power supply for unmatched reliability
- management and operations software is included with every system for simplified common management tasks and complete easy maintenance
- All products ship with data and cleaning cartridge
- 2m (6.5ft) Active Thunderbolt 3 Cable included
- Kensington Lock
- Optional ruggedized carry case for desktop chassis and LTO modules
- Supports LTFS and AES 256-bit encryption
- All products have a standard three year warranty with option upgrade to five years
All dual drive desktop designs from Symply feature Symply CableLess technology – a unique design that allows for the easy removal of LTO drives, making them highly serviceable and easy to upgradeable. So you can start with one LTO in your desktop system and add an additional drive in a matter of seconds, without even having to power the system off. Likewise for servicing, if in the unlikely event of a drive failure, the failed drive can be removed without the need to power off the whole system, and only the failed drive need be returned for repair. Simple.
Technical Specifications
| Product Name | Form Factor | Drives | LTO Gen | Host Interface | Expansion Interface | Dims D x W x H cm/in | Weight Kg/Lbs | Power Supply |
|---|---|---|---|---|---|---|---|---|
| SymplyDIT LTO | Desktop | 1 | HH LTO-7, LTO-8 & LTO-9 |
2 x Thunderbolt3 &
1 x SAS SFF-8088 |
SAS SFF-8644 |
27.5 x 21.1 x 9.2 cm
11 x 8 1/2 x 3 1/2 in |
3.8 KG
8.4 lb |
Internal 200W (110V~240V)
Typical 136W |
| SymplyDIT LTO XTH | Desktop | 1 or 2 | HH LTO-7, LTO-8 & LTO-9 |
2 x Thunderbolt3 &
1 x SAS SFF-8088 |
SAS SFF-8644 |
30.0 x 21.1 x 13.6 cm
12 x 8 1/2 x 5 1/2 in |
5.5 KG
12.7lb |
Internal 200W (110V~240V)
Typical 171W |
| SymplyDIT LTO XTF | Desktop | 1 | FH LTO-9 |
2 x Thunderbolt3 &
1 x SAS SFF-8088 |
SAS SFF-8644 |
30.0 x 21.1 x 13.6 cm
12 x 8 1/2 x 5 1/2 in |
6.7 KG
14.7lb |
Internal 200W (110V~240V)
Typical 136W |
Performance & Capacity
| Drive Type | Media Type |
Speed
Native / Compressed |
Native / Compressed Capacity |
|---|---|---|---|
| LTO-9 Full Height | LTO-9 | 400 / 900MB/Sec | 18 / 45TB |
| LTO-9 Half Height | LTO-9 | 300 / 750MB/Sec | 18 / 45TB |
| LTO-8 Half Height | LTO-8 | 300 / 750MB/Sec | 12 / 30TB |
| LTO-7 Half Height | LTO-7 | 300 / 750MB/Sec | 6 / 15TB |
Reliability
| LTO Type | Half Height | Full Height (LTO-9) |
|---|---|---|
| MTBF (Hours) | 250,000 @ 100% duty cycle | 250,000 @ 100% duty cycle |
| MSBF | 100,000 cycles | 100,000 cycles |
| Load / Unload Cycles | 80,000 cycles | 300,000 cycles |
Environmental (LTO-9)
| Temperature | Humidity | Altitude | |
|---|---|---|---|
| Operating | 15 to 35 C (59 to 95 F) | 20% to 80% (non-condensing) | 3048m (10,000 ft) |
| Non-Operating | -40 to 60 C (-40 to 140 F) excludes media | 10% to 90% (non-condensing) | 12192m (40,000 ft) |
Operating System Support
| Thunderbolt 3 Interface | SAS Interface |
|---|---|
| macOS 10.13 and later / Microsoft Windows 10, Window Server 2016 and 2019 | Microsoft Windows, RHEL 7.8 & 8.2, SLES 12, Ubuntu 18.04 LTS, macOS |
