Description, Specifications for Toshiba N300 8TB NAS Hard Drive (HDWG180UZSVA)
- Toshiba N300 Network grade
- 8TB CMR, 7200 RPM
- 3 Years Full Replacement Warranty
--

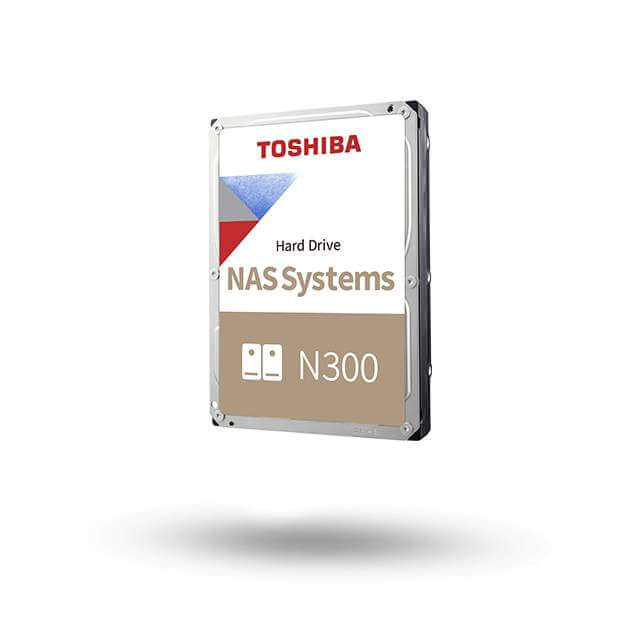

Toshiba N300 NAS Hard Drive
Built for 24/7 reliability
EMEA Region, Toshiba Storage Solutions The 3.5-inch N300 NAS Hard Drive offers unprecedented reliability for NAS and other high-performance storage systems. It is optimized to meet the reliability, endurance, performance and scalability requirements of 24-hour x 7-day high-capacity storage for personal, home office and small business use. The N300 is available in capacities of up to 16 TB.
Use for:
Network Attached Storage (NAS)
Desktop RAID and servers
Multimedia server storage
Private cloud storage
Small business server and storage
DESIGNED FOR NAS
Through its contact with NAS manufacturers, Toshiba recognizes the need for high-reliability disks in support of modern data storage and retrieval demands including streaming, backup and archiving. The drive, which can support multi-RAID systems with up to 8 hard disk drives, allows large volumes of data to be reliably stored and accessed by multiple clients 24 hours a day, 365 days a year.
- 3.5" SATA Hard Drive
- 7200 rpm
- 128/256/512 MB buffer
- 24/7 operation
- Supports 1-to-8 bay NAS
- High reliability and enhanced real-time performance
- Toshiba Dynamic Cache Technology
- Toshiba Stable Platter Technology
- High-endurance design
- Error recovery control
- Temperature control
- 3-year warranty
INTEGRATED RV SENSORS
Regular hard disk drives without RV sensors can affect the performance of a multi-bay NAS System by generating 'knock-on' vibration. N300 drives ensure high reliability by minimising vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV sensors also compensate for rotational vibration - eliminating the possibility of 'knock-on' vibration in multi-bay NAS configuration systems.
RELIABLE ALWAYS-ON OPERATION
NAS systems in small businesses or creative environments often need to be accessed by several users, at different locations, simultaneously. Therefore today's NAS drives must deliver high data transfer rates and simultaneous upload and download 24 hours a day, 7 days a week. Offering high reliability and scalability, N300 drives achieve a max. 180 TB/year workload factor, up to 3 times more than convenient desktop hard drives.
HIGH DURABILITY AND HEAT PREVENTION
Use of high-endurance components is one of the reasons that the N300 series offers better durability than other conventional hard disk drives. At the same time, automatic adjustment of seek speed to reduce heat during high-temperature operation further improves endurance in demanding situations.
HIGH SPEED FOR MULTI-DRIVE ENVIRONMENT
High performance and fast read speed is made possible under high data access loads from multiple users thanks to 512, 256 or 128 MB data buffer. This makes the drive suitable for small businesses and creative professionals looking for solutions to handle high data volumes using multi-RAID NAS environments.
OPTIMISED CACHE ALLOCATION
Toshibas Dynamic Cache Technology, a self-contained cache algorithm with on-board buffer management, optimizes how the cache is allocated during read/write to provide the high-level performance demanded by real-time domains.
REDUCED NOISE AND ENERGY COSTS
The 12 TB, 14 TB and 16 TB N300 NAS Hard Drives use a helium-sealed design, achieving low power consumption while increasing storage density. Toshiba Groups laser welding technology ensures that the helium remains securely sealed inside the drive enclosure. With the environment in mind, the helium-filled N300 models minimize acoustic output to just 20db (typical) in idle mode. The devices are ideal for large scale server systems allowing for rich scalability of up to 8 drives.
BUILT TO DELIVER, DESIGNED TO LAST
Toshiba is renowned the world over for 50 years of leading innovation and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshibas wealth of experience in hard drives is at work in your storage system. A three year extended warranty is also included with the N300 for the ultimate peace of mind.
Part number | Capacity |
---|---|
HDWG31GUZSVA (Bulk) | 16 TB |
HDWG21EUZSVA (Bulk) | 14 TB |
HDWG21CUZSVA(Bulk) | 12 TB |
HDWG11AUZSVA (Bulk) | 10 TB |
HDWG180UZSVA (Bulk) | 8 TB |
HDWN160UZSVA (Bulk) | 6 TB |
HDWQ140UZSVA (Bulk) | 4 TB |
Basic Specifications
Form factor | 3.5-inch |
Interface | SATA 6.0 Gbit/s |
Drive bays supported | 1 to 8 |
Rotational Vibration (RV) Sensors | Yes |
Advanced Format (AF) | Yes |
RoHS compatible | Yes |
Halogen Free | Yes |
Shock Sensor | Yes |
Performance |
|
Rotational speed | Rotational speed |
Buffer size |
Bulk Retail |
Data transfer speed | 274 MB/s typ. (16 TB), 260 MB/s typ. (14 TB), 253 MB/s typ. (12 TB), 248 MB/s Typ. (10 TB), 241 MB/s Typ. (6 TB, 8 TB), 204 MB/s Typ. (4 TB) |
Average latency | 4.17 ms |
Native Command Queing (NCQ) | supported |
Reliability |
|
Workloads | 180 TB/year |
MTTF | 1,200,000 hours (16 TB) / 1,000,000 hours |
Unrecoverable error rate | 1 per 10E¹? bits read |
24/7 operation | Yes |
Limited warranty | 3 years |
Power Management |
|
Supply voltage |
Retail: Bulk: |
Consumption (operating) |
6.91 W typ. (16 TB), 6.77 W typ. (14 TB), 6.49 W typ. (12 TB), 9.92 W typ. (10 TB), 8.61 W typ. (8 TB), 10.1 W typ. (6 TB bulk: HDWN160UZSVA) 7.88 W typ. (6TB retail: HDWG160EZSTA) 9.6 W typ. (4 TB) |
Consumption - Active Idle | 4.03 W typ. (16 TB), 4.54 W typ. (14 TB), 4.28 W typ. (12 TB), 7.22 W typ. (10 TB), 6.33 W typ. (8 TB), 6.7 W typ. (6 TB bulk: HDWN160UZSVA) 5.59 W typ. (6TB retail: HDWG160EZSTA) 5.2 W typ. (4 TB) |
Environmental |
|
Temperature (operating / non-operating) | 0 to 65° C / -40 to 70°C 5 to 65° C / -40 to 70°C (12 TB - 16 TB) |
Vibration (operating) | 7.35 m/s² (0.75 G) (5 to 300 Hz), 2.45 m/s² (0.25 G) (300 to 500 Hz) |
Vibration (non-operating) |
Bulk Retail |
Shock (operating) | 686 m/s² (70 G) / 2 ms duration |
Shock (non-operating) | 2450 m/s² (250 G) / 2 ms duration |
Acoustics (idle mode) | 20 dB typ. (12 TB - 16 TB) 34 dB typ. (6TB Retail: HDWG160EZSTA, 8TB, 10 TB) 33 dB typ. (6 TB Bulk: HDWN160UZSVA) 30 dB typ. (4 TB) |
Physical |
|
Dimensions | 147 (L) x 101.85 (W) x 26.1 (H) mm |
Weight (approx.) |
770 g max. (6 TB - 10 TB), 720 g max. (4 TB, 12 TB - 16 TB) |
Box Content |
|
Box Content | 3.5-inch internal hard drive - N300 NAS Hard Drive |
