SYNOLOGY DiskStation DS224+

AED 1,350.00 (Inc. VAT)

Brand: SYNOLOGY SKU: DS224+ GTIN: 846504005253

⬤

In-Stock

In stock now, but In rare cases, it may be oversold (in-store sale or multiple online orders). If this happens, we try to offer you an alternative or provide a lead time on product ordered.

Other DS Plus Models. Current model is : DS224+

DS224+

AED 1,350.00

DS620 Slim

AED 2,080.00

DS723+

AED 2,000.00

DS423+

AED 2,100.00

DS923+

AED 2,520.00

DS1522+

AED 3,300.00

DS1621+

AED 4,025.00

DS1821+

AED 4,545.00

Free Delivery within UAE Delivered Between Dec 28 and Dec 29

Returns and Refund Privacy Policy

More Information about SYNOLOGY DiskStation DS224+ DS224+

Logistics, Bulk pricing , Stock and Partnership Info

Price Matching and Lowest Bulk Price for SYNOLOGY DiskStation DS224+ DS224+ Dubai UAE

The price listed on the website is the retail price intended for end users, but If you are an end user looking for a better price you can either email us or use the "Match My Price" service. Resellers can request for a special reseller price.

Free Shipping for SYNOLOGY DiskStation DS224+ DS224+ in UAE

We Ship SYNOLOGY DiskStation DS224+ DS224+ to Dubai, Abu Dhabi and Rest of the UAE free of cost. We have Export freight rates for this product also to Middle East including Saudi Arabia, Kuwait, Qatar, Bahrain and Oman. For African countries, our organized carriers tend to be expensive and we ask that you arrange shipping yourself. VAT Exceptions for export orders from the UAE are available if shipped from Jebel Ali or if your carrier issues proper export documentation

Information about SYNOLOGY DiskStation DS224+ from Vendor Site

Keep your data on-site

Consolidate and safeguard

Protect all your data with integrated security features and centralized access.

Manage important data

Share, back up, and access files, photos, surveillance video, and more.

Minimize energy impact

15 watts under full operation keeps operating costs low.

Simply faster

DS224+ is faster at indexing files in Synology Drive and Synology Photos and more capable of running demanding web applications compared to previous-generation systems.

Web applications

0 %

more responses per second

Synology Drive

0 %

faster file indexing

Synology Photos

0 %

faster image indexing

Store, share, and protect

Manage all your documents, images, and other files, back up applications and devices, and protect your property with professional video surveillance.

Private cloud for data sharing

Multi-layered backup

Back up workstations, smartphones, cloud apps, and more

Smart surveillance management

Btrfs: advanced file system for data protection

The Synology DiskStation Manager (DSM) operating system that powers the DS224+ uses the advanced Btrfs file system, which safeguards your data against corruption and allows for the reversal of unintended or malicious changes through the use of snapshot technology.

Performance backed by Synology drives

Leverage high sustained performance and reliability with well-engineered drives designed specially for Synology systems.

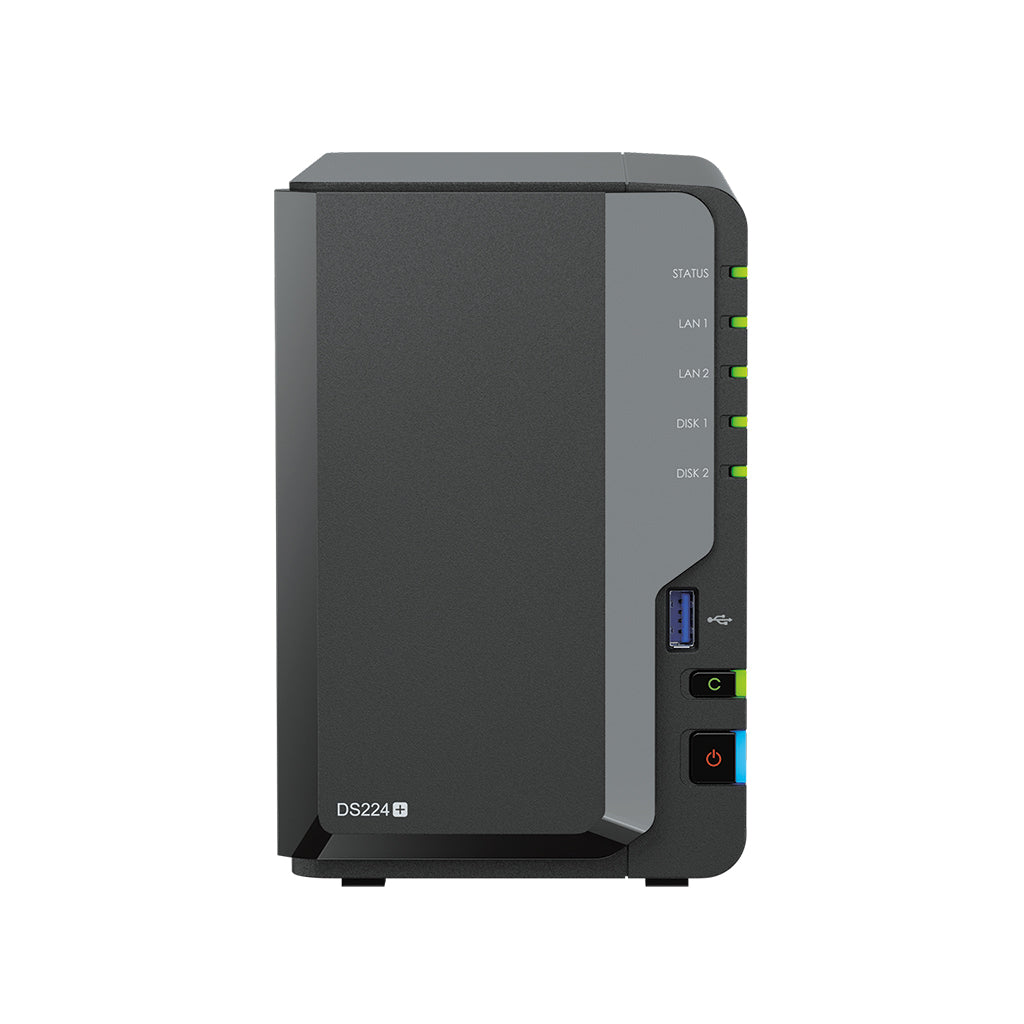

DiskStation DS224+

1 Status Indicator
2 LAN Indicators
3 Drive Status Indicators

4 USB 3.2 Gen 1 Port
5 Copy Button
6 Power Button

7 Fan
8 Kensington Security Slot
9 LAN Port

10 Reset Button
11 USB 3.2 Gen 1 Port
12 Power Port

More ways to harness your NAS

Notes:

Compared with its predecessor, the Synology DiskStation DS220+. Performance figures are obtained through internal testing by Synology. Actual performance may vary depending on the testing environment, usage, and configuration. See for more information.
C2 Storage for Hyper Backup and Hybrid Share requires purchase of an eligible annual or monthly subscription. A free trial is available for each newly registered Synology Account.
Surveillance Station includes 2 free licenses. Connecting more cameras and devices requires additional licenses.
Storage drives are sold separately. Refer to the for compatible devices.

Hardware Specs
Software Specs

Hardware Specifications
CPU
CPU	CPU Model	Intel Celeron J4125
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	4-core 2.0 (base) / 2.7 (burst) GHz
Hardware Encryption Engine (AES-NI)
Memory
Memory	System Memory	2 GB DDR4 non-ECC
Total Memory Slots	1
Maximum Memory Capacity	6 GB (2 GB + 4 GB)
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage
Storage	Drive Bays	2
Compatible Drive Type*	3.5' SATA HDD 2.5' SATA SSD
Hot Swappable Drive*
Notes	'Compatible drive type' indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*	2
USB Copy
Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
File System	Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance
Appearance	Size (Height x Width x Depth)	165 mm x 108 mm x 232.2 mm
Weight	1.30 kg
Others
Others	System Fan	92 mm x 92 mm x 1 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level*	22 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter	60 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	14.69 W (Access) 4.41 W (HDD Hibernation)
British Thermal Unit	50.09 BTU/hr (Access) 15.04 BTU/hr (HDD Hibernation)
Notes	For more information on how power consumption is measured, refer to . Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75&ring;C; Humidity: 58.2-61.8%
Temperature
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification
Certification	FCC CE BSMI VCCI RCM UKCA CCC KC
Warranty
Warranty	2-year hardware warranty, extendable to 4 years with
Notes	Availability varies by region. Before purchasing, please visit the official web pages of and for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
Environment	RoHS Compliant
Packaging Content
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
DDR4 non-ECC SODIMM: 3.5' SATA HDD: Surveillance Device License Pack
Notes	All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

DSM Specifications
Maximum Single Volume Size*	108 TB
Maximum Internal Volume Number	64
SSD TRIM
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1
RAID Migration	Basic to RAID 1
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1
Volume Expansion by Adding a HDD	Synology Hybrid RAID
Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
File Protocol	SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections	500
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	1,500
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Maximum Local User Accounts	2,048
Maximum Local Groups	256
Maximum Shared Folder	256
Maximum Shared Folder Sync Tasks	8
Hybrid Share Folder Number	10
Data & Folder Backup
Entire System Backup
Notes	Full-system backup requires DSM 7.2 or later.
Synology High Availability
Syslog Events per Second	800
Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Google Chrome Firefox Microsoft Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, &Rcy;&ucy;&scy;&scy;&kcy;&icy;&jcy;, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, &Ccaron;eský, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes	For an updated list of supported browser versions, check the .
Add-on Packages
Antivirus by McAfee (Trial)
Antivirus by McAfee (Trial)
Maximum Number of Concurrent Users	100
Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
Document Viewer
Download Station
Download Station
Download Station	Maximum Concurrent Download Tasks	80
Maximum iSCSI Target Number	128
Maximum LUN	256
LUN Clone/Snapshot, Windows ODX
Free Email Accounts	5
Maximum Number of Concurrent Users	100
Maximum Server Performance	1,224,000 emails per day, approx. 37GB
Notes	For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
DLNA Compliance
Facial Recognition
Object Recognition
Notes	Object recognition requires an upgrade of memory capacity to a minimum of 4 GB.
Maximum Snapshots per Shared Folder	1,024
Maximum of System Snapshots	65,536
Maximum IP cam	25 (including 2 Free License)
Total FPS (H.264)	750 FPS @ 720p (1280x720) 750 FPS @ 1080p (1920x1080) 350 FPS @ 3M (2048x1536) 275 FPS @ 5M (2591x1944) 170 FPS @ 4K (3840x2160)
Total FPS (H.265)	750 FPS @ 720p (1280x720) 750 FPS @ 1080p (1920x1080) 600 FPS @ 3M (2048x1536) 475 FPS @ 5M (2591x1944) 200 FPS @ 4K (3840x2160)
Notes	Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Recommended Number of Concurrent Sync Clients	350 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files	5,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)
Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Maximum Users	1,200
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Recommended Virtual Machine Instances	2
Recommended Virtual DSM Number	2 (including 1 Free License)
Notes	The specifications vary depending on system configuration and memory size.
Maximum Connections	40

Notes:

Model specifications are subject to change without prior notice.
The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
If usage requirements exceed the specifications above, please contact our for professional advice.
