Description, Specifications for Synology SA3200D
- SA Series 2U rackmount Dual Controller Model for High Availability
- Scales upto 36 drives, Diskless 0 TB
- Supports RAID SHR, 0,1,5,6,10
--

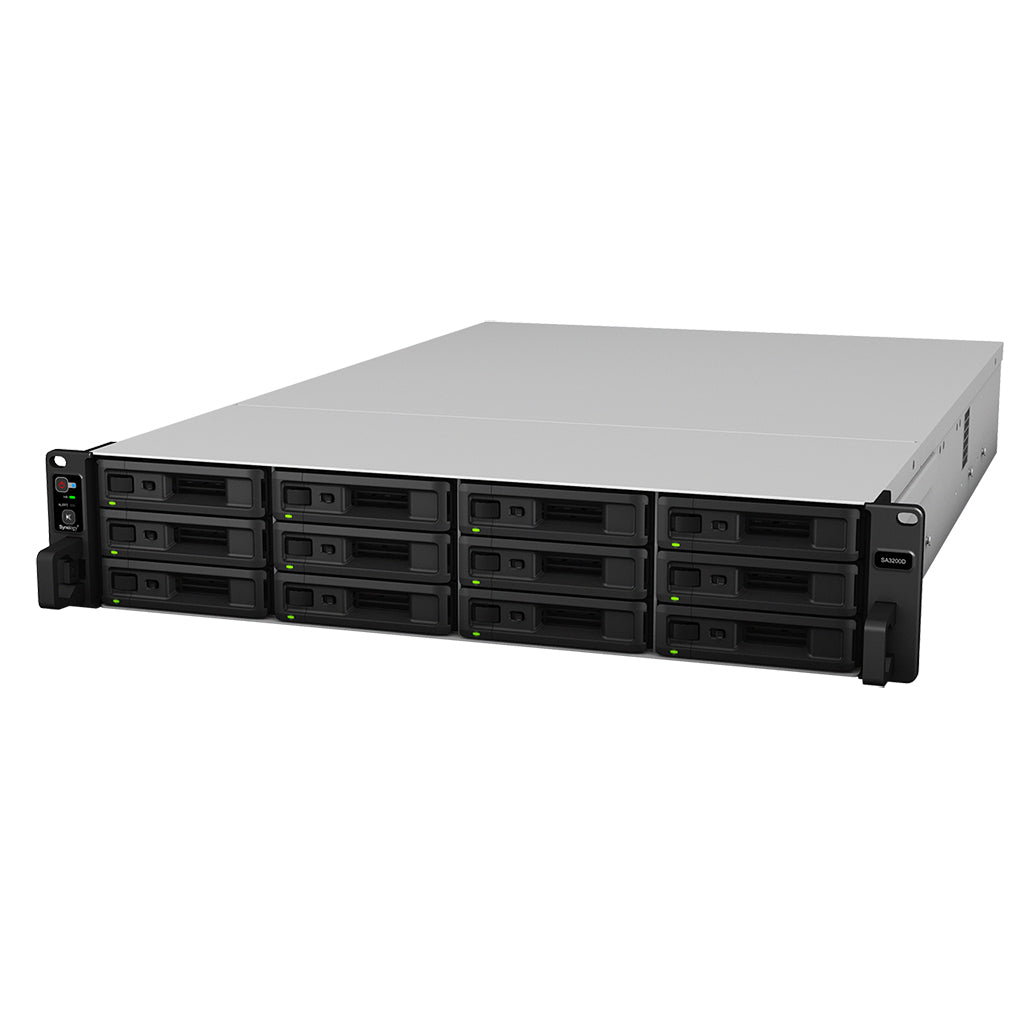

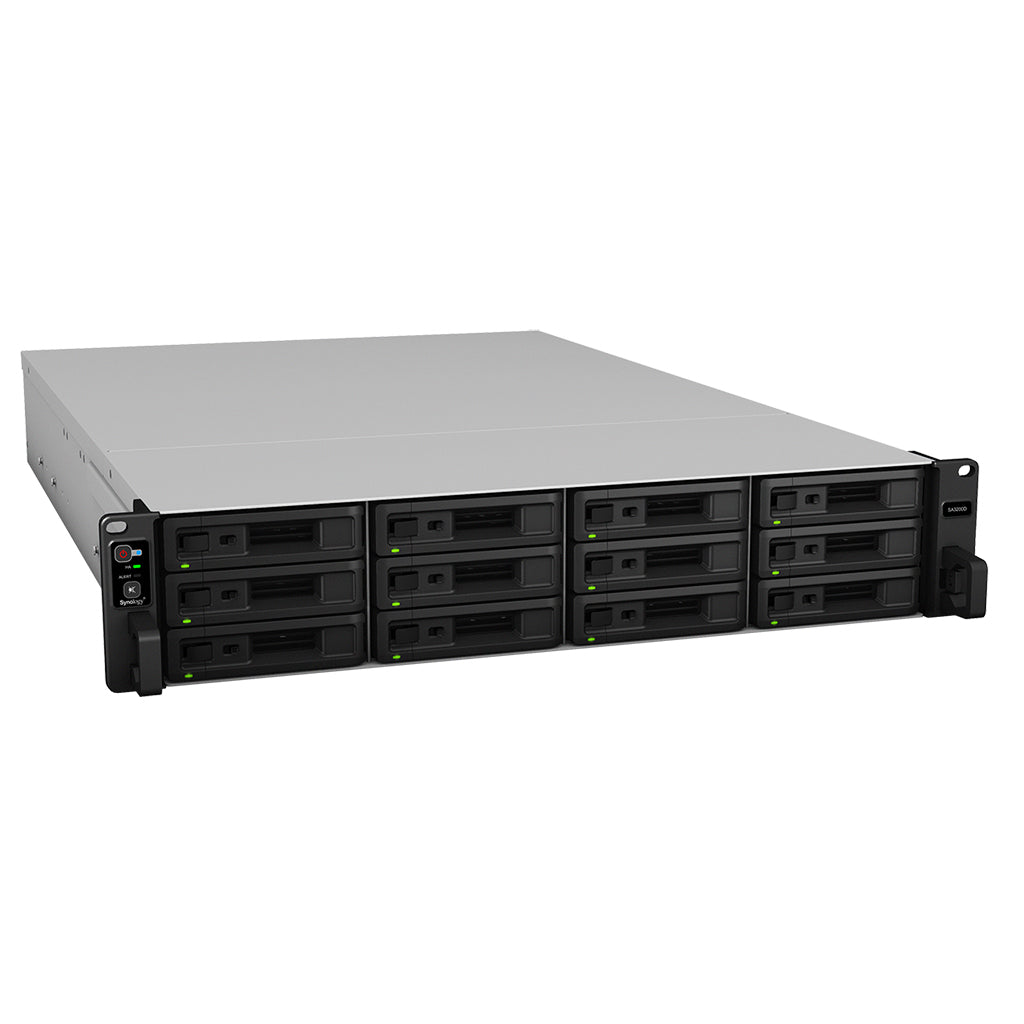

SA3200D
Give your business the data protection and service availability it needs
Maximizing availability has never been this easy
Simplify and centralize your data management infrastructure with Synology SA3200D. Storage controller redundancy powered by Synology High Availability automatically minimizes downtime to under a minute1, delivering outstanding cost effectiveness in just a 2U footprint.
High Availability
Dual storage controllers
Cost-effective
Shared storage design
Effortless
Automatic system-level protection
Scalable
Up to 36 drives for 576 TB
Scales up with you
SA3200D supports two RXD1219sas expansion units for up to 36 SAS 3.5/2.5 bays. Scale up to 576 TB2 without downtime to quickly meet new demands.
Redundant power supply
Modularized and swappable 500W power supply prevents service downtime in the event of a power supply failure.
Active-passive controller modules
Automatic system failover to the secondary controller, maximizing service uptime.
PCIe 3.0 slot
Supports 10GbE/25GbE network interface cards for higher throughput.
2 x 1GbE & 1 x 10GbE
Cost-effective RJ45 networking interface options built-in.
Mini-SAS HD port
Connect up to 2 x RXD1219sas for flexible plug-and-play volume expansion.
Processor
The Intel® Xeon® D-1521 processor on each controller provides enterprise-class reliability, availability, and serviceability.
4 x DDR4 memory slots
8 GB ECC UDIMM, expandable up to 64 GB for more demanding workloads.
Modularized cooling
Dual fan modules per controller allow for easy maintenance and replacement.
SATA DOM
Operating system files are isolated from the stored data, providing higher throughput and stability.
Non-Transparent Bridge (NTB)
Faster and lower-latency connectivity between controllers.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
5-year warranty
As we're committed to improving product innovation and quality, Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
Powered by Synology DSM
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Snapshot Replication
Schedulable and instantaneous data protection of shared folders and iSCSI LUNs for disaster prevention.
Central Management System
Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.
Hyper Backup
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
Active Backup Suite
Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Office 365, and G Suite.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone and restore virtual machines.

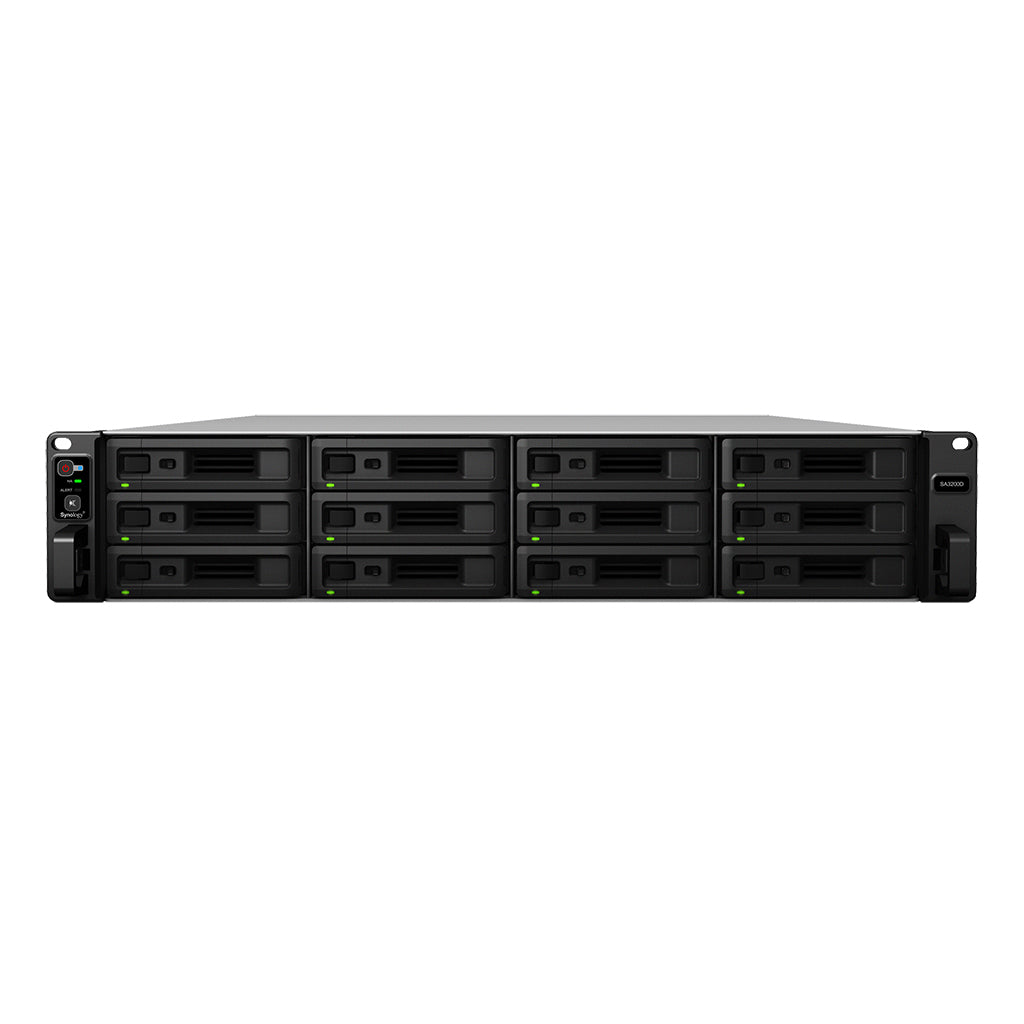

- Power button and indicator
- Beep off button
- Drive tray
- Drive status indicator

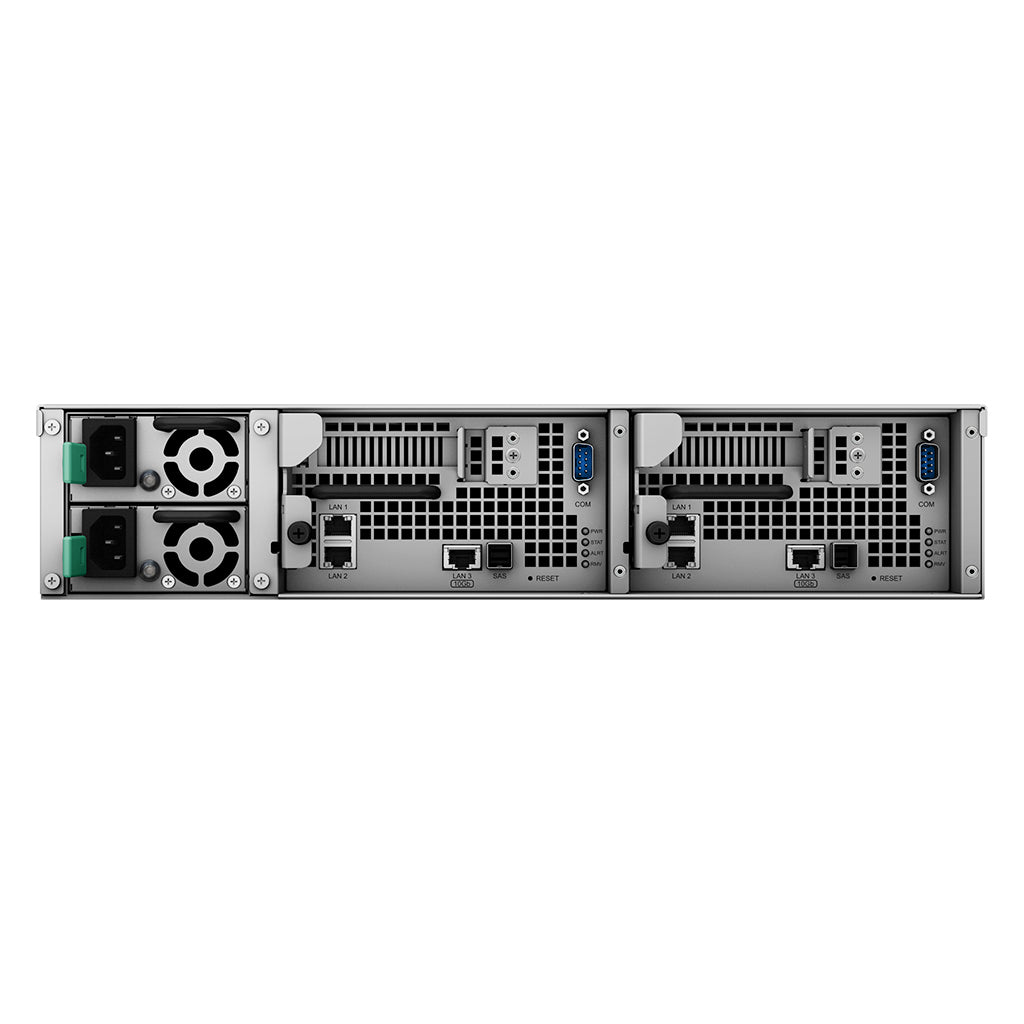

- Power port
- PSU indicator and beep off button
- PSU fan
- PCIe expansion slot
- Console port
- 1GbE RJ-45 port
- 10GbE RJ-45 port
- Expansion port
- Reset button
Specifications
Controller |
Number of Controller Module | 2 |
|---|---|---|
CPU |
CPU Model | Intel Xeon D-1521 |
| CPU Quantity (per controller) | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | Quad Core 2.4 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
Memory |
System Memory (per controller) | 8 GB DDR4 ECC UDIMM |
| Pre-installed Memory Module (per controller) | 8 GB (8 GB x 1) | |
| Total Memory Slots (per controller) | 4 | |
| Expandable Memory (per controller) | 64 GB (16 GB x 4) | |
| Notes |
|
|
Storage |
Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 36 (RXD1219sas) | |
| Compatible Drive Type* (See all supported drives) |
|
|
| Maximum Internal Raw Capacity | 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) | |
| Maximum Raw Capacity with Expansion Units | 576 TB (192 TB + 16 TB drive x 24) (Capacity may vary by RAID types) | |
| Maximum Single Volume Size* |
|
|
| Hot Swappable Drive | ||
| Notes |
|
|
External Ports |
RJ-45 1GbE LAN Port (per controller) | 2 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port (per controller) | 1 | |
| Expansion Port | 1 | |
PCIe |
PCIe Expansion (per controller) | 1 x Gen3 x8 slot (x8 link) |
| Add-In-Card Support | PCIe Network Interface Card (Learn more) | |
File System |
Internal Drives |
|
Appearance |
Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 430.5 mm x 692 mm | |
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 724 mm | |
| Weight | 19.7 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS1317) | |
| Notes | The rail kit is sold separately | |
Others |
System Fan | 60 mm x 60 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ||
| Noise Level* | 51.3 dB(A) | |
| Power Supply Unit / Adapter | 500 W | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 417.48 W (Access) 274.38 W (HDD Hibernation) |
|
| British Thermal Unit | 1425.45 BTU/hr (Access) 936.85 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
Temperature |
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification |
|
|
Warranty |
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment |
RoHS Compliant | |
Packaging Content |
|
|
Optional Accessories |
|
|
| Notes | All memory modules will operate at the maximum frequency specified by the CPU manufacturer. |
